Fuji Electric VFC200A-7W — Industrial Fans & Blowers

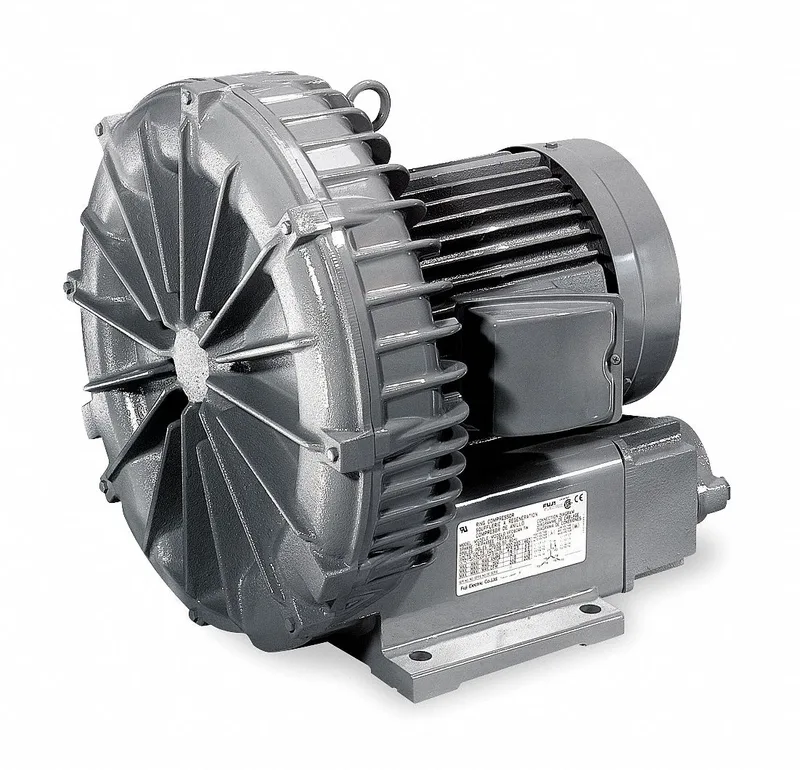

FUJI ELECTRIC VFC200A-7W Ring Compressor, 0.33 hp, 42 cfm

MPNVFC200A-7W

FUJI ELECTRIC Ring Compressor, VFC200A-7W, 0.33 hp, 42 cfm, 34.8 in wc, 200-230/460V AC three-phase, 60 Hz, Class B NEMA insulation, aluminum housing.

$515.67 – $941.78Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VFC200A-7W — Identification
ParameterValue
Product typeRing Compressor
VFC200A-7W — Air Performance
ParameterValue
Max. flow rate42 cfm
Max. operating pressure34.8 in wc
Max. vacuum33 in wc
VFC200A-7W — Electrical
ParameterValue
Output power0.33 hp
Voltage200-230/460V AC
PhaseThree
Frequency60 Hz
Current rating1.2/0.6 A
Thermal protectionAutomatic Reset
StandardsClass B NEMA Insulation
VFC200A-7W — Mechanical
ParameterValue
Inlet size1 in
Outlet size1 in
Inlet typeNPT
Outlet typeNPT
Inlet connection genderFemale
Outlet connection genderFemale
Housing materialAluminum
Overall length10 in
Overall height9.6 in
Overall depth9.03 in
Weight22 lb
VFC200A-7W — Environmental
ParameterValue
Ambient temperature, max.104 °F
Max. air temperature rise72 °F

Product details

The VFC200A-7W: The 42 cfm at 34.8 in wc tells you this blower is built for moderate-pressure air movement — think aeration, vacuum pickup, or blow-off on a packaging line, not high-pressure ring main. The dual-voltage winding (200-230V or 460V) means you wire it for the supply you have; the current halves on the 460V tap, which keeps the branch circuit breaker smaller. Automatic-reset thermal protection is a field-friendly feature: if the blower overheats from a blocked inlet or high ambient (rated up to 104 °F), it shuts off and restarts itself when cool — no manual reset to chase. That's one less call-back on a remote install.

Frequently asked questions

What is VFC200A-7W's listed item type?

The item type is a Ring Compressor (regenerative blower).

What phase and voltage does the VFC200A-7W require?

It is a three-phase unit rated for 200-230/460V AC at 60 Hz.

What is the maximum flow and pressure of this blower?

Maximum flow is 42 cfm; maximum operating pressure is 34.8 in wc; maximum vacuum is 33 in wc.
