Fuji Electric VFC200P-5T — Industrial Fans & Blowers

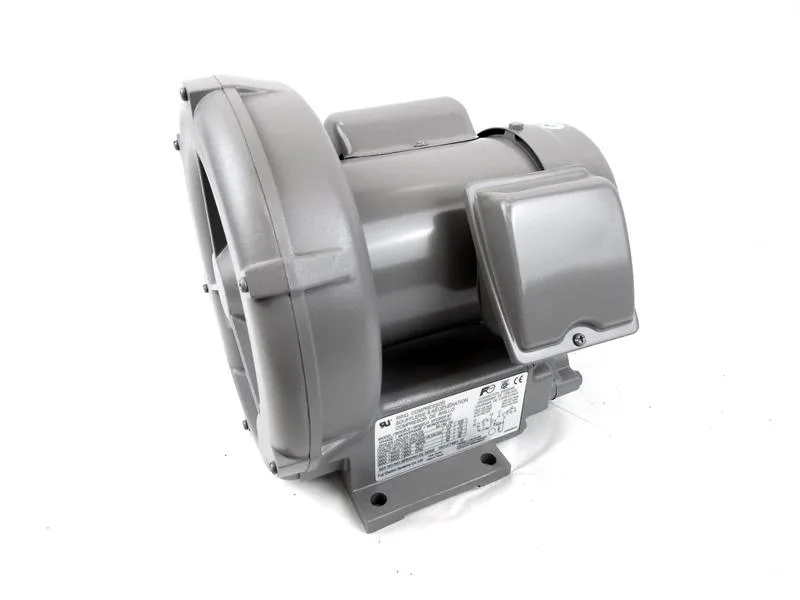

FUJI ELECTRIC VFC200P-5T Ring Compressor, 0.33 hp, 115/230V

MPNVFC200P-5T

FUJI ELECTRIC Ring Compressor, VFC200P-5T, 0.33 hp, 115/230V AC single-phase, 42 cfm, 33.9 in wc max pressure.

$744.79 – $1,175.31Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VFC200P-5T — Identification
ParameterValue
Product typeRing Compressor
VFC200P-5T — Air Performance
ParameterValue
Max. flow rate42 cfm
Max. operating pressure33.9 in wc
Max. vacuum33 in wc
VFC200P-5T — Electrical
ParameterValue
Output power0.33 hp
Voltage115/230V AC
PhaseSingle
Frequency60 Hz
Current rating3.6/1.8 A
Thermal protectionAutomatic Reset
StandardsClass B NEMA Insulation
VFC200P-5T — Mechanical
ParameterValue
Inlet size1 in
Outlet size1 in
Inlet typeNPSC
Outlet typeNPT
Inlet connection genderFemale
Outlet connection genderFemale
Housing materialAluminum
Overall length10 in
Overall height9 in
Overall depth9.03 in
Weight22 lb
VFC200P-5T — Environmental
ParameterValue
Ambient temperature, max.104 °F
Max. air temperature rise72 °F

Product details

The FUJI ELECTRIC VFC200P-5T is a regenerative blower — a Ring Compressor — rated for 0.33 hp output on a single-phase 115/230V AC supply at 60 Hz. It pulls 3.6 A on the 115 V tap and 1.8 A on the 230 V tap, so the wiring choice at the panel decides the draw. The motor carries Class B NEMA insulation and an automatic-reset thermal protector, meaning it will cycle itself back on after a thermal trip once it cools — no manual reset to chase out on the route.

This blower is listed as current production. It is a standard catalog item with no last-time buy or obsolescence to work around.

Frequently asked questions

What is the VFC200P-5T's listed item type?

It is listed as a Ring Compressor — a regenerative blower designed for continuous-duty air movement.

What phase and voltage does the VFC200P-5T require?

It runs on single-phase power, accepting either 115 V AC or 230 V AC at 60 Hz. The current draw is 3.6 A on the 115 V tap and 1.8 A on the 230 V tap.
