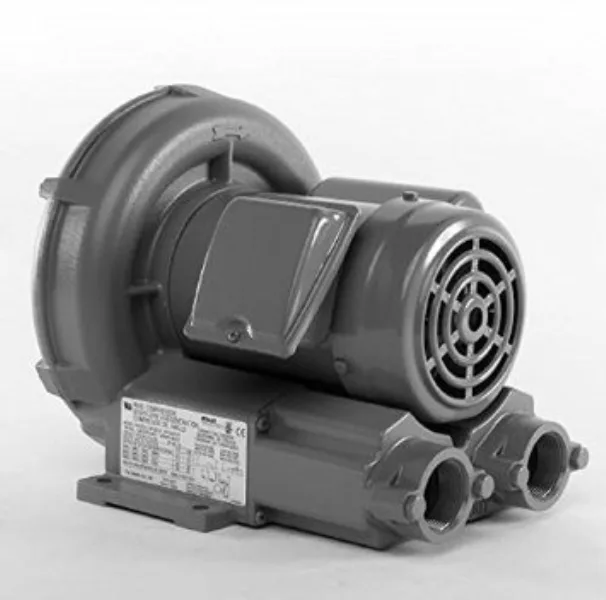

The FUJI ELECTRIC VFC300P-5T is a regenerative ring compressor — a single-stage blower that moves air without internal contact, so it handles continuous duty in vacuum or pressure service. It draws 5.0 A at 115 V or 2.5 A at 230 V, single-phase, 60 Hz, and delivers 56 cfm free air. Maximum vacuum is 45 in wc; maximum operating pressure is 46.1 in wc. The 0.5 hp motor is wound with Class B NEMA insulation, good for a 104 °F ambient with a 54 °F temperature rise.
FUJI ELECTRIC VFC300P-5T Ring Compressor, 0.5 hp, 115/230V A
MPNVFC300P-5T
FUJI ELECTRIC Ring Compressor, VFC300P-5T, 0.5 hp, 115/230V AC single-phase, 56 cfm at 60 Hz, 45 in wc vacuum, Class B NEMA insulation.
$657.23 – $1,027.90Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Ring Compressor |
| Parameter | Value |
|---|---|
| Max. flow rate | 56 cfm |
| Max. operating pressure | 46.1 in wc |
| Max. vacuum | 45 in wc |
| Parameter | Value |
|---|---|
| Output power | 0.5 hp |
| Voltage | 115/230V AC |
| Phase | Single |
| Frequency | 60 Hz |
| Current rating | 5.0/2.5 A |
| Thermal protection | Pilot Duty |
| Standards | Class B NEMA Insulation |
| Parameter | Value |
|---|---|
| Inlet size | 1-1/4 in |
| Outlet size | 1-1/4 in |
| Inlet type | NPT |
| Outlet type | NPT |
| Inlet connection gender | Female |
| Outlet connection gender | Female |
| Housing material | Aluminum |
| Overall length | 10 in |
| Overall height | 10.12 in |
| Overall depth | 11.62 in |
| Weight | 26 lb |
| Parameter | Value |
|---|---|
| Ambient temperature, max. | 104 °F |
| Max. air temperature rise | 54 °F |
Product details
Frequently asked questions
What are the key ratings for the VFC300P-5T?
0.5 hp, 115/230V AC single-phase, 56 cfm flow, 45 in wc vacuum, 46.1 in wc pressure, Class B NEMA insulation.
What port sizes does the VFC300P-5T use?
Both inlet and outlet are 1-1/4 in NPT female.
