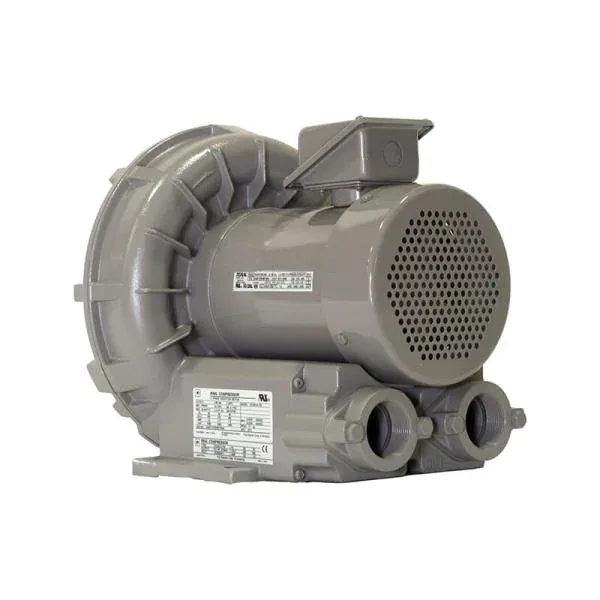

The FUJI ELECTRIC VFZ701A-5W is a 6.7 hp regenerative blower — a ring compressor — built for 575V AC three-phase, 60 Hz supply. It moves up to 217 cfm of air at a maximum pressure of 129.6 in wc and pulls a vacuum to 99 in wc. That pressure-vacuum range makes it a fit for pneumatic conveying, aeration, and vacuum-hold applications where a single unit handles both sides of the line.
Rated at 6.5 A full-load on 575V, this blower sits in the NEMA Premium IE3 efficiency class — the Totally Enclosed Fan-Cooled (TEFC) aluminum housing sheds heat in continuous-duty cycles. The 2-inch NPT female inlet and outlet ports match standard pipe sizes; no adapter fitting needed for most industrial air-handling manifolds.
