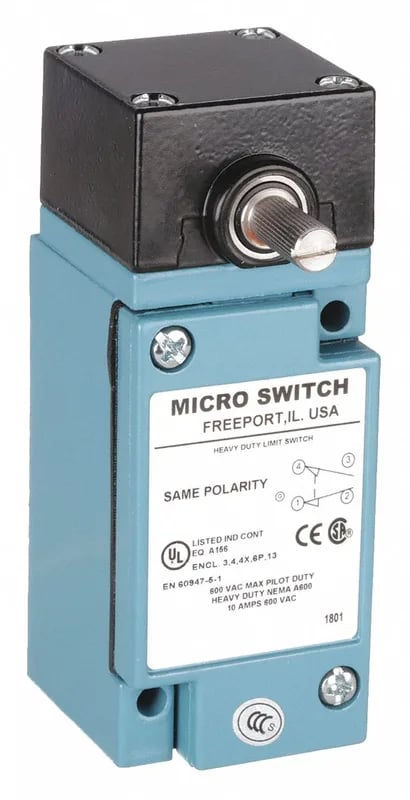

Honeywell LSA3K
MPNLSA3K
HONEYWELL Non Plug-In Limit Switch: Roller Lever, Metallic, Momentary, Non Plug-In, HDLS, 1NO/1NC
$251.15 – $288.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | HDLS |
| Compatible actuator type | Roller Lever |
| Contact form | 1NO/1NC |
| IP rating | IP65; IP66; IP67 |
| NEMA enclosure rating | 1; 3; 4; 4X; 6; 6P; 12; 13 |
| Mounting style | Surface |
| Mounting hole diameter | 0.2 in |
| Number of mounting holes | 2 |
| Mounting hole vertical center to center distance | 30 mm |
| Mounting hole horizontal center to center distance | 60 mm |
| Electrical connection | Screw Terminals |
| Operating temperature - maximum | 250 °F |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature - minimum | 10 °F |
| Body depth | 1.75 in |
| Body width | 1.62 in |
| Body height | 2.95 in |
| Body material | Zinc |
| Overall depth | 2.44 in |
| Overall width | 1.62 in |
| Overall height | 4.2 in |
| Standards | CCC; CE; CSA; UKCA; UL Listed |
| Brand | HONEYWELL |
| Action | Momentary |
| Pretravel | 15° |
| Body style | X |
| Overtravel | 60° |
| AC contact rating | 10 A @ 600 V |
| Actuator location | Side |
| DC contact rating | 10 A @ 250 V |
| Includes actuator | No Actuator Included |
| Body configuration | Non Plug-In |
| Differential travel | 5° |
| Boot sealed actuator | No Boot Included |
| Directional movement | CCW/CW |
| Resistance properties | Corrosion Resistant |
| Operating torque - maximum | 4 in-lb |
MPN
LSA3K
