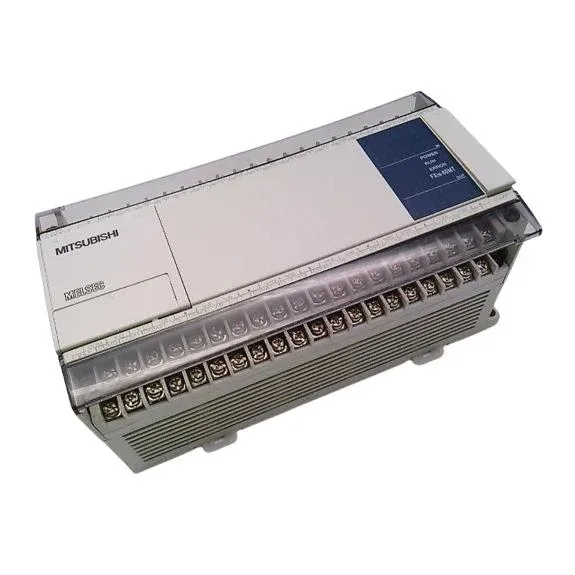

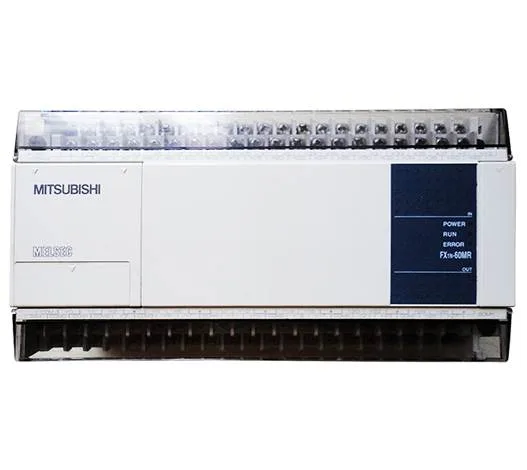

Mitsubishi Electric FX1N-60MT-001 — PLCs (Programmable Logic Controllers)

Mitsubishi FX1N-60MT-001 PLC, 36 inputs, AC100-240V, EOL

Name: FX1N-60MT-001
Brand: Mitsubishi Electric
SKU: FX1N-60MT-001
Availability: LimitedAvailability
Author: Commodity Manager Lina

MPNFX1N-60MT-001

End of Life

Mitsubishi Electric FX1N series PLC, FX1N-60MT-001, 36 inputs, 128 output relay points, AC100-240V, 50/60Hz, EOL stage.

$136.00Ref. price · indicative, final on quote

Add to RFQ

Mitsubishi Electric FX1N-60MT-001 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX1N-60MT-001 key specifications
Parameter	Value
Type of instruction	Basic instruction : Sequence Instruction: 27 -step ladder instructions: two
Output type (format)	Transistor / sink output
1ms integration type (Capacitor keep)	T246 ~ T249 4 points (0.001 to 32.767 seconds) * Notes on the keep area is keep the area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
100ms integration type (Capacitor keep)	T250 ~ T255 6 points (0.1 to 3,276.7 seconds) * Notes on the keep area is keep the area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
ON voltage	1.5V
Voltage	AC100 ~ 240V
Withstand voltage	. When Performing A Withstand Voltage Test, Please Go Between The Ground Terminal Of Each Terminal And The Basic Unit At A Voltage Of Below Power Supply Terminal (AC Power) And Between The Ground Terminal: AC1.5KV 1 Minute DC24V Service Power Supply, And Input Terminal The (DC24V) And Between The Ground Terminal: AC500V 1 Minute Output Terminal (Transistor) And Between The Ground Terminal: AC500V 1 Minute
Input signal voltage	DC24V ± 10%
Allowable voltage range	AC85 ~ 264V
Inrush current	Maximum 30A 5ms or less / AC100V, maximum 50A 5ms or less / AC200V
Input signal current	X000 ~ X007 : 7mA / DC24V
Input ON sensitivity current	X000 ~ X007 : More than 4.5mA

All specifications

FX1N-60MT-001 additional specifications
Parameter	Value
Open circuit leakage current	0.1mA / DC30V
Input OFF sensitivity current	1.5mA or less
Power fuse	250V 3.15A
Power consumption	35W includes input current worth of (per point 7mA or 5mA,).
DC24V service power	400mA is unrelated to the expansion block of connection.
External power supply	DC5 ~ 30V
Allowable momentary power failure time	10ms will continue to operate for the momentary power failure follows.
Frequency	57 ~ 150Hz : Acceleration: 9.8M / S 2 X, Y, Z Each Direction 10 Times (For A Total Of Each 80 Minutes) Criteria, According To IEC61131-2
Rated frequency	50 / 60Hz
Maximum frequency	100kHz
I/O channels	36 points (40) in () is the number of occupied, the difference between the effective number is empty number.
1 phase 1 count input	[C235, C236] Up To Two Points: The Best 60KHz High Speed Compared To SET / RESET When Using: 30KHz [C237 C245] Up To 4 Points: Up To 10KHz High Speed Compared To SET / RESET When Using: 10KHz Sequencer Is Processed By The High-Speed Counter And Pulse Density Instruction The Sum Of The Frequency (The Two-Phase Counter Summing Up The 2 Times The Input Frequency) Is A 60KHz Maximum. During The High-Speed Comparison SET / RESET Use, The Sum Of the frequency at which the sequencer is treated with high-speed counter and pulse density instruction (the two-phase counter summing up the 2 times the input frequency) is the maximum 30kHz is.
1-Phase 2-Count input	[C246] Up To One Point: The Best 60KHz High Speed Compared To SET / RESET When Using: 30KHz [C247 C250] Up To Two Points: The Best 10KHz High Speed Compared To SET / RESET When Using: 10KHz Frequency At Which The Sequencer Is Treated With High-Speed Counter And Pulse Density Instruction (The Two-Phase Counter Summing Up The 2 Times The Input Frequency) Of The Total Is 60KHz Maximum. During The High-Speed Comparison SET / RESET Use, The Sum Of The Frequency at which the sequencer is treated with high -speed counter and pulse density instruction (the two-phase counter summing up the 2 times the input frequency) is the maximum 30kHz is.
2-Phase 2-Count input	[C251] Up To One Point: The Best 30KHz High Speed Compared To SET / RESET When Using: 15KHz [C252 C255] Up To Two Points: The Best 5KHz High Speed Compared To SET / RESET When Using: 5KHz High-Speed Counter And Pulse Density Instruction Frequency On Which The Sequencer Process In (The Two-Phase Counter Summing Up The 2 Times The Input Frequency) Of The Total Is 60KHz Maximum. During The High-Speed Comparison SET / RESET Use, The Sum Of The Frequency At which the sequencer is treated with high- speed counter and pulse density instruction (the two-phase counter summing up the 2 times the input frequency) is the maximum 30kHz is.
Direct mounting at the time	Frequency: 10 ~ 57Hz : Amplitude Half: 0.075 mm X, Y, Z Each Direction 10 Times (For A Total Of Each 80 Minutes) Criteria, According To IEC61131-2
Input connection shape	Removable terminal block (M3 screws)
Output connection shape	Terminal block (M3 screws)
Response time	OFF ON : Y000, Y001: 5 s following Y002 later: 0.2ms or less
Input response time	About 10Ms X000 X007 has a built-in digital filter, can be changed in 1ms unit to 0 ~ 15ms by the D8020. If 0 is specified, X000, X001 is 10 s, X002 ~ X007 will be 50 s.
Operating temperature	0 ~ 55 ····· operation, -20 ~ 70 ····· during storage
Relative humidity	35 ~ 85% RH (non-condensing) ..... operation
Vibration resistance	When the DIN rail mounting : Frequency: 10 ~ 57Hz : Amplitude Half: 0.035Mm X, Y, Z Each Direction 10 Times (For A Total Of Each 80 Minutes) Criteria, According To IEC61131-2
Shipping weight	1.8 Kg
10ms	T200 ~ T245 46-point (0.01 to 327.67 seconds)
Other	You can use the built-in analog volume two points as an analog timer VR1: D8030, VR2: D8031 2 points (0 to 255)
State	Initial state (EEPROM keep) : S0 ~ S9 10 points * Notes on the keep area keep area and non-keep-area is fixed. (Change is not allowed in the parameter) in order to reliably keep the EEPROM is required energizing time of the sequencer is more than five consecutive minutes.
Device	Input and output relay : Input relay : X000 ~ X177 128 points (octal number) extension when used with
Ground	D Grounding Class (Ground Resistance: 100Omu Or Less) Ground, Please Dedicated Ground Or Shared Ground.
Impact	147M / S 2, Action Time 11Ms, X At Half-Sine Pulse, Y, Z 3 Times Each Direction Criterion, According To IEC61131-2
ON OFF	Y000, Y001: 5 s following Y002 later: 0.2ms or less
Counter	16-bit up : C0 ~ C15 16 points (0 to 32,767 counts)
Nesting	[Master control] N0 N7 8 points (for MC instruction)
Pointer	JUMP, for CALL branch : P0 ~ P127 128 points (CJ instruction, for the CALL instruction, for the END jump P63)
Constant	Decimal number (K) : 16-bit: -32,768 + 32,767 32-bit: -2,147,483,648 ~ + 2,147,483,647
Peak load	Resistance load : 0.5A or less / output per point 0.8A or less / COM terminal per one
Anti-noise	Noise voltage 1,000Vp-p, noise width 1 s, due to rising 1ns, cycle 30 ~ 100Hz of noise simulator
For special	M8000 ~ M8255 256 points
Total score	128 points or less (at the time of expansion in combination)
Advanced use	Or Less 2,000M Can Not Be Used Under The Pressurized Environment To More Than Atmospheric Pressure. There Is A Possibility Of Failure.
Input format	sink
Output relay	Y000 ~ Y177 128 points (octal number) extension when used with
X010 or later	More than 3.5mA
Inductive load	12W / DC24V
Program memory	The maximum memory capacity : 8000 step comment, up to 8000 steps, including the file register
Use atmosphere	Corrosive, there is no flammable gas, conductive dust (dust) that is not terribly
Auxiliary relay	For general use : M0 ~ M383 384 points
Hexadecimal	16-bit: 0 FFFF 32 bit: 0 ~ FFFFFFFF
Input impedance	X000 ~ X007 : 3.3k
Input interrupt	I00 ~ I50 6 points
Real-time clock	Clock function : Built from 1980 to 2079 years (with leap year correction) The year 2-digit / 4-digit switch, monthly deviation ± 45 seconds (25 ) * Notes on the clock function the current time a large-capacity capacitor of the clock that is built-in (built-in) in has been backed up. Large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. In addition, it can also be held in the battery when you use the optional battery.
32-Bit up / down	C200 ~ C219 20 points (-2,147,483,648 ~ + 2,147,483,647 count)
For 16-bit index	V0 ~ V7, Z0 ~ Z7 16 points
Timer (on-delay)	100ms : T0 ~ T199 200 points (0.1 to 3,276.7 seconds)
16 bit for special	D8000 ~ D8255 256 points
Circuit insulation	Photocoupler
High-speed counter	[32-bit high-speed up / down (EEPROM keep)] C235 C255 1 phase: 60KHz, 10KHz 2 phase: 30kHz, 5kHz There is a limit to the number and input frequency that can be used by the conditions used. * Notes on the keep area keep area and non-keep-area is fixed. (Change is not allowed in the parameter) in order to reliably keep the EEPROM is required energizing time of the sequencer is more than five consecutive minutes.
Estimated lead time	1-10 Working Days.
Input signal format	No-voltage contact input NPN open collector transistor
Protective function	There is password protection function (by keyword function)
File register	D1000 ~ D7999 maximum 7000 points (the program area in the 500-point units from the D1000 by the parameter as a file register (set to EEPROM) Allowed)
Programming language	Sequence program
Insulation resistance	. When Performing The Insulation Resistance Test, Please Go Between The Ground Terminal Of Each Terminal And The Basic Unit At A Voltage Of Below Power Supply Terminal (AC Power) And Between The Ground Terminal: DC500V 5Emuomega More In Insulation Resistance Tester DC24V Service Power Supply , And The Input Terminal (DC24V) And Between The Ground Terminal: DC500V 5Emuomega More In Insulation Resistance Tester And The Output Terminal (Transistor) Ground Terminal Between: DC500V 5Emuomega More In Insulation Resistance Tester
For keep (EEPROM keep)	S10 ~ S127 118 points * Notes on the keep area keep area and non-keep-area is fixed. (Change is not allowed in the parameter) in order to reliably keep the EEPROM is required energizing time of the sequencer is more than five consecutive minutes.
16-bit up (EEPROM keep)	C16 ~ C31 16 points (0 to 32,767 counts) * Notes on the keep area keep area and non-keep-area is fixed. (Change is not allowed in the parameter) in order to reliably keep the EEPROM is required energizing time of the sequencer is more than five consecutive minutes.
Input operation display	Input ON when the LED lights up
Input and output points	Number of inputs : 128 points or less (at the time of expansion combination) However, the following 128 points in the input and output total
Positioning instruction	ABS Current Value · Read ([D] ABS) · Homing [ZRN] (Without DOG Search Function) Near Point DOG: To Slow Down In The ON, The Near Point DOG:. Stops At OFF (Homing Operation Of Counting The Zero- Signal And Different Point From) , Variable-Speed Pulse Output [PLSV] , Relative Positioning [DRVI] - Absolute Positioning [DRVA] Pulse Output Format: Pulse Train Tasu Direction
Application instructions	3.7 to the number of 100 s / instruction
Corresponding basic unit	Transistor output type basic unit
Input circuit insulation	Photocoupler
Output operation display	Photocoupler drive when LED lighting
Pulse output instruction	Output Pulse (PLSY) , Acceleration And Pulse Output With Speed (PLSR) Pulse Output Format: Pulse Train (The Direction Is Controlled By The Sequence)
For keep (capacitor keep)	S128 ~ S999 872 points * Notes on the keep area keep area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
Number of controlled axes	Independent 2-axis
16-Bit up (Capacitor keep)	C32 ~ C199 168 points (0 to 32,767 counts) * Notes on the keep area keep area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
Arithmetic processing speed	Basic instruction : 0.55 ~ 0.7 s / instruction
16 bit for keep (EEPROM keep)	D128 ~ D255 128 points * Notes on the keep area keep area and non-keep-area is fixed. (Change is not allowed in the parameter) in order to reliably keep the EEPROM is required energizing time of the sequencer is more than five consecutive minutes.
RUN during the write function	Yes (can change programs during the sequencer RUN)
Remote i (O points (CC-Link))	The actual I / O, including below 128 points
Memory cassette (memory board)	FX1N-EEPROM-8L (8000 step EEPROM)
Input and output control method	Batch processing method (END when the instruction is executed), input and output refresh command, Pulse catch function
16 bit for keep (capacitor keep)	D256 ~ D7999 7744 points * Notes on the keep area keep area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
32-Bit up / down (Capacitor keep)	C220 ~ C234 15 points (-2,147,483,648 ~ + 2,147,483,647 count) * Notes on the keep area is keep the area and non-keep-area is fixed. (Parameter change is not allowed) large-capacity capacitor (built-in) becomes a full charge in the current time of 30 minutes, and holds the current value of 10 days. When the voltage of the large-capacity capacitor is reduced there is that the state of the capacitor keep the device can not be properly maintained. Or when used for the first time after purchasing the FX1N Series PLC, when you want to use after the state that does not put a long time power supply, please initialize the capacitor keep the device. Also, before you resume operation, please do the setting of the device and the current time necessary for the operation.
The arithmetic and control system	Stored program repeat operation method, there interrupt instruction
Built-in memory capacity and format	8000 step EEPROM (memory backup required)
Data register (32-bit in the pair used)	16-bit general purpose : D0 ~ D127 128 points

Product details

What the EOL status means for your BOM line

The FX1N-60MT-001: No official successor order code is listed in the manufacturer's records. For a BOM that requires this exact model, the only path is the surplus and broker market — availability and pricing are confirmed at RFQ time, not before.

I/O configuration and power supply

This PLC provides 36 input points (X000–X177, octal numbering) and supports up to 128 output relay points (Y000–Y177) when expansion is used. The input format is sink-type with a rated voltage of AC100–240V at 50/60Hz. The power supply includes a 250V 3.15A fuse and draws an inrush current of up to 30A for 5ms at AC100V or 50A at AC200V. Grounding must be Class D (ground resistance 100Ω or less) per the specification.

Program memory and real-time clock

The program memory holds up to 8000 steps including file registers, with a comment capacity also at 8000 steps. A built-in real-time clock tracks dates from 1980 to 2079 with leap-year correction and a typical monthly deviation of ±45 seconds at 25°C. The clock is backed by a large-capacitor that charges in 30 minutes and holds the time for 10 days; an optional battery can extend backup. The PLC includes 256 special auxiliary relays (M8000–M8255), 384 general-purpose auxiliary relays (M0–M383), and 128 pointers for JUMP and CALL branch instructions (P0–P127). Timers include 200 on-delay 100ms timers (T0–T199, 0.1–3276.7 seconds) and 46-point 10ms timers (T200–T245, 0.01–327.67 seconds).

Environmental and mechanical limits

The FX1N-60MT-001 is rated for use in atmospheres free of corrosive gases, flammable gases, and conductive dust. It should not be used in pressurized environments above 2000m or under conditions exceeding atmospheric pressure, as failure risk increases.

Frequently asked questions

What is the program memory capacity of FX1N-60MT-001?

Maximum program memory is 8000 steps, including file registers. Comment capacity is also 8000 steps.

Does FX1N-60MT-001 have a real-time clock?

Yes, it includes a built-in real-time clock covering years 1980–2079 with leap-year correction and typical monthly deviation of ±45 seconds at 25°C. The clock is backed by a large capacitor that holds time for 10 days after a 30-minute charge; an optional battery can extend backup.
