Mitsubishi Electric FX2N-20GM — PLCs (Programmable Logic Controllers)

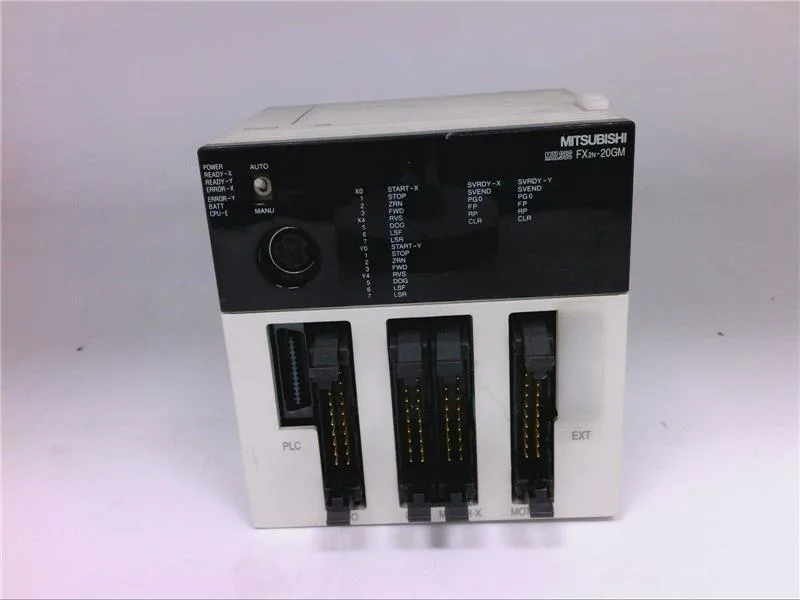

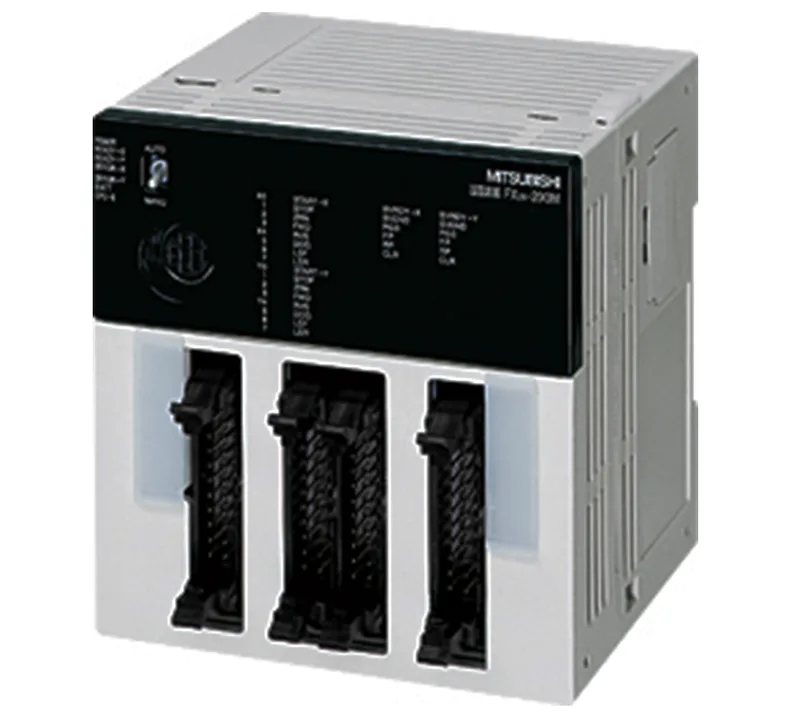

Mitsubishi FX2N-20GM Positioning Module, EOL, 2-Axis Pulse O

MPNFX2N-20GM
End of Life

Mitsubishi FX2N-20GM positioning module, EOL, 2-axis pulse output, 200 kHz, CLR DC 5-24V, 7.8k step RAM.

$828.00 – $2,402.75Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

FX2N-20GM key specifications
ParameterValue
Withstand voltageBetween external terminals and ground terminal: 500 VAC for 1 minute
Power-supply voltageDC 24 V + 10% -15% (external power supply)
Rated load voltage FP (RP)DC 5 V to 24 V (power supplied from the VIN terminal)
Maximum voltage drop during ON0.5 V or less (CLR is 1.5 V or less)
Input signal voltage START, STOP, ZRN, FWD, RVS, LSF, LSR, DOG, x 0 to x 7DC24V ± 10% (internal power supply)
Leakage current when OFF0.1 mA / DC 24 V or less
Maximum load current positioning unit drive output20 mA
Absolute position detection (ABS current value reading)Set by parameter
Input signal current START, STOP, ZRN, FWD, RVS, LSF, LSR, DOG, SVRDY, SVEND, x 0 to x 77 mA / 24 VDC
Power consumption10 W
Power supply fuse125V 1A
Allowable momentary power outage timeContinue operation against momentary power failure of 5 ms or less

All specifications

FX2N-20GM additional specifications
ParameterValue
Frequency57 to 150 Hz : Acceleration: 4.9 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total)
Output frequency200 kHz (100 kHz at interpolation)
Maximum frequency200 kHz (100 kHz in interpolation operation)
Anti-vibration when DIN rail is installed frequency10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total)
Operating temperature0 to 55 ° C. ... Operating, -20 to 70 ° C....when saved
Use altitudeCan not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity35 to 85% RH (noncondensing).... in operation
Shipping weight1.4 Kg
CLRDC 5V to 24V
DOGAbout 0.5 ms
Mass0.4 Kg
PG 0About 16 μs
GroundClass D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground.
Control unitpulse, mm, 10 -1 inch, deg
SVRDY, SVEND0.3 mA or less
Servo systemSVRDY (servo ready), SVEND (servo end), PG 0 (zero point signal)
Output methodOpen collector transistor output
Position dataBlock specification (X axis, Y axis, simultaneous 2 axes): 0 to 99 (100 blocks)
Noise immunityNoise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Program memory7.8 k steps (internal RAM, battery backup)
Use atmosphereThere is no corrosive property, flammable gas, conductive dust (dust) is not serious
General purposeBody X 0 to X 7 (shared with interrupt input, manual pulsar input) Expansion block connection allows addition of X 10 to X 67 (octal number)
Operating systemFWD (manual forward rotation), RVS (manual reverse rotation), ZRN (mechanical origin return), START (automatic start), STOP (stop), manual pulsar (X 0 to X 7 are shared with general input and interrupt input) Operation input (by parameter setting)
Impact resistance147 m / s 2 , working time 11 ms, three times in X, Y, Z directions with a sine half-wave pulse
Mechanical systemDOG (near point signal), LSF (forward rotation limit), LSR (reverse rotation limit), 4 interrupts (X 0 to X 7 general-purpose input, shared with manual pulsar input)
Positioning range-999,999 to + 999,999 [X (minimum command unit) pulse] -999,999 to + 999,999 [X (minimum command unit) mm] -999,999 to + 999,999 [X (minimum command unit) X 10 -1 inch] -999,999 + 999,999 [X (minimum command unit) deg] The minimum command unit can be set to x 1, x 10 -1 , x 10 -2 or x 10 -3 in the parameter. However, at the time of Pulse unit, X 1, X 10 1 , X 10 2 , X 10 3
Pulse output formForward rotation / reverse rotation pulse train, pulse train + direction
Circuit insulationPhotocoupler insulation
Output form FP, RPYou can select forward (FP) / reverse (RP) pulse train or pulse train (PLS) + direction (DIR).
SVRDY, SVEND, PG 0DC 5 V to 24 V ± 10%
Estimated lead timeUsually ships in 1 - 10 working days.
Input signal formatContact input or NPN open collector transistor input
Pulse output methodOpen collector method
Programming languagecod number system
Application sequencerFX2N, FX3U, FX2NC, FX3UCFX2NC - CNV - IF is required for connection to FX2NC. To connect to FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required.
Insulation resistanceBetween external terminal and ground terminal: 500 MV DC 500 MΩ or more with insulation resistance meter
Interpolation function2 axis linear interpolation, 2 axis circular interpolation
Number of control axes(Independent / simultaneous) 2 Axis
Input operation displayLED ON when input is ON
Output operation indicationLED on when output is ON
Control input operation switchMANU (manual operation) / AUTO (automatic operation)
Number of occupied i (O points)Sequencer input / output 8 points occupation (It can count either input or output)
Acceleration (deceleration processing)Automatic trapezoidal acceleration / deceleration
Positioning unit general-purpose output50 mA
X 0 to x 7 (when used as general-purpose input)About 3 ms
Number of output points positioning unit drive output3 points (FP, RP, CLR)
Input capture speed START, STOP, ZRN, FWD, RVS, LSF, LSR, SVRDY, SVENDAbout 3 ms
Input ON sensitivity START, STOP, ZRN, FWD, RVS, LSF, LSR, DOG, x 0 to x 74.5 mA or more
Input OFF sensitivity START, STOP, ZRN, FWD, RVS, LSF, LSR, DOG, x 0 to x 71.5 mA or less

Product details

The Mitsubishi FX2N-20GM is a standalone 2-axis positioning module with open-collector pulse output at 200 kHz (100 kHz interpolation). It accepts DC 24 V ± 15% and runs as a smart peripheral or stand-alone controller.

Key ratings that decide fit

The CLR (clear) input range is DC 5 V to 24 V — common for 24 V PLC I/O or 5 V TTL-level encoders. The DOG (near-point dog) signal requires a pulse width of about 0.5 ms; the zero-point signal (PG 0) typical response is about 16 µs. These timing specs matter when replacing a failed module: if your machine relies on a faster or slower dog sensor, the position capture may shift.

Integration notes

Mounts on a DIN rail in the FX2N bus extension. Requires a dedicated Class D ground (100 Ω or less). Supply current is 10 W from the 24 V external supply; a 125 V, 1 A fuse protects the module. Input signals accept contact or NPN open-collector, 24 V nominal. The module cannot be used above 2000 m altitude without derating, and must not be installed in environments with corrosive gas, flammable gas, or excessive conductive dust.

Frequently asked questions

What is the CLR input voltage range?

The CLR (clear) input accepts DC 5 V to 24 V, typically used with a 24 V PLC output or a 5 V sensor.

How is the FX2N-20GM sourced given its EOL status?

Submit an RFQ for surplus/new-old-stock availability. Lead times typically run 1-10 working days subject to channel stock. No manufacturer commitment remains.
