Mitsubishi Electric QD75P1

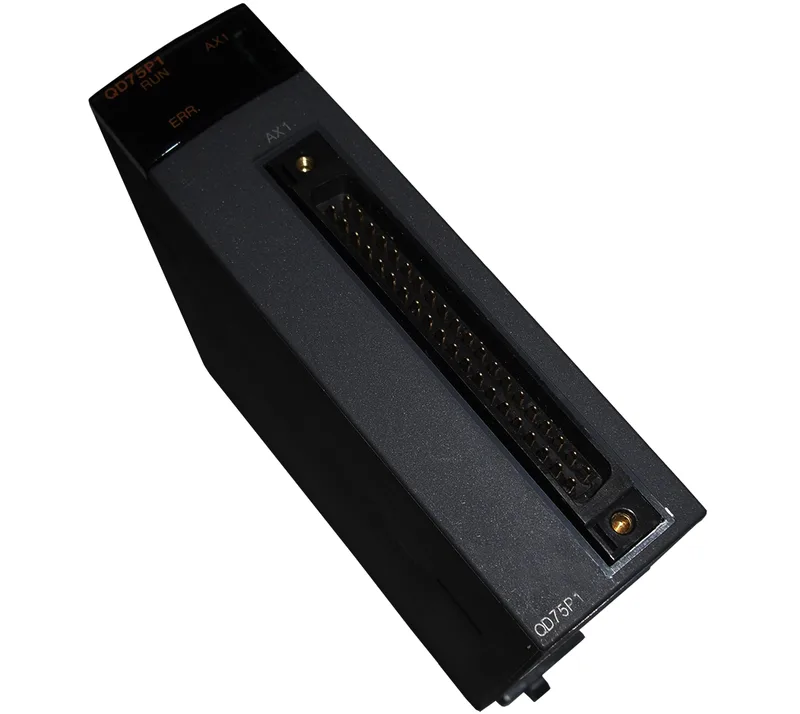

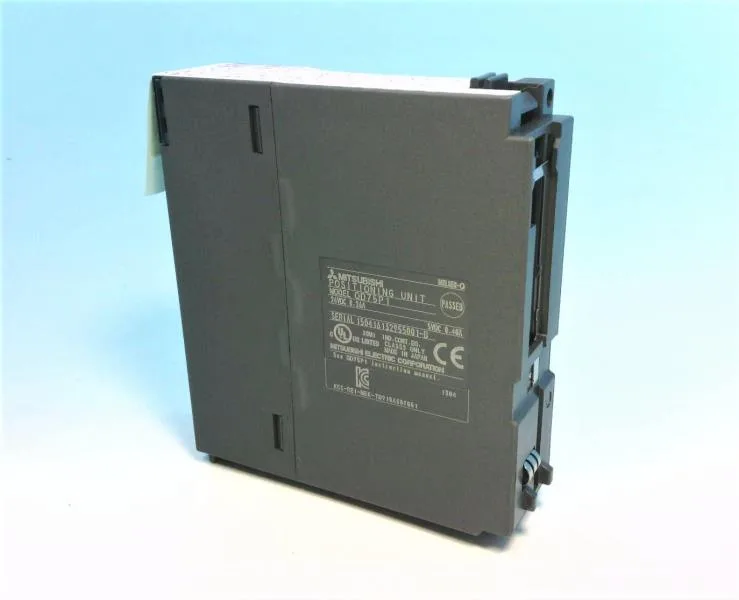

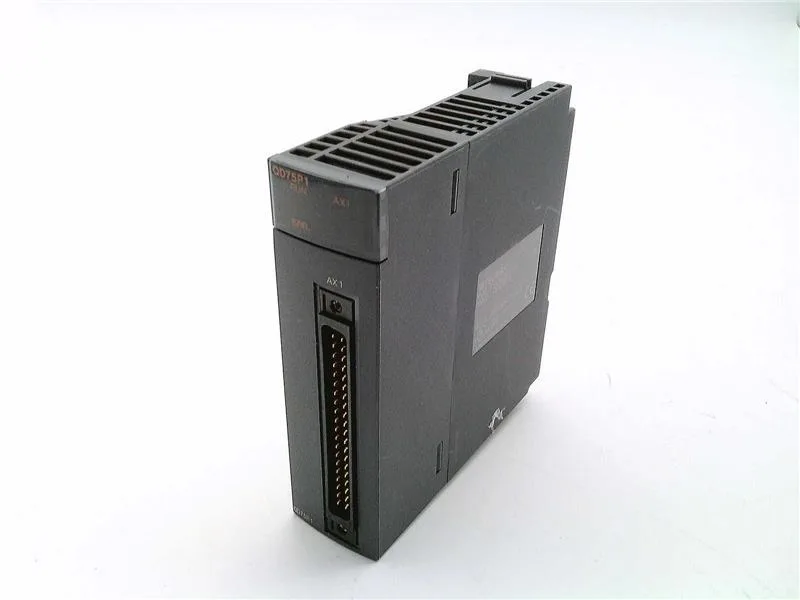

Mitsubishi QD75P1 Positioning Module, 1-Axis Open Collector

MPN QD75P1

Mitsubishi Electric QD75P1 positioning module, 1-axis open-collector pulse output, 32-point I/O, flash ROM battery-less backup, PTP and path control.

$202.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

QD75P1 specifications
ParameterValue
Product typePositioning Module
Weight0.15 Kg

Product details

Single-axis positioning with battery-less retention

The QD75P1 is a single-axis open-collector pulse output positioning module for the Mitsubishi Q-series PLC rack — the 32-point I/O assignment slots it as an intelligent module, not a standard I/O card, so the rack's power budget and base addressing must account for that.

Motion profile coverage and wiring constraints

Control system options include PTP, linear and arc path control, speed control, and speed-position or position-speed switching — this covers the motion types a machine builder needs for pick-and-place, indexing conveyors, or cam-profiled moves, all within a single module. The open-collector output limits the pulse train to about 200 kHz practical and restricts cable length to roughly 10 m before signal degradation — if the drive or stepper is farther than that, the differential line-driver sibling (QD75D1) is the correct fit. External wiring terminates on a 40-pin connector; the 0.3 to 0.75 mm² wire range accepts standard control cable, but the connector pitch is tight — a pre-crimped harness or a breakout board saves time during panel build-out.
