What this module is and what it does

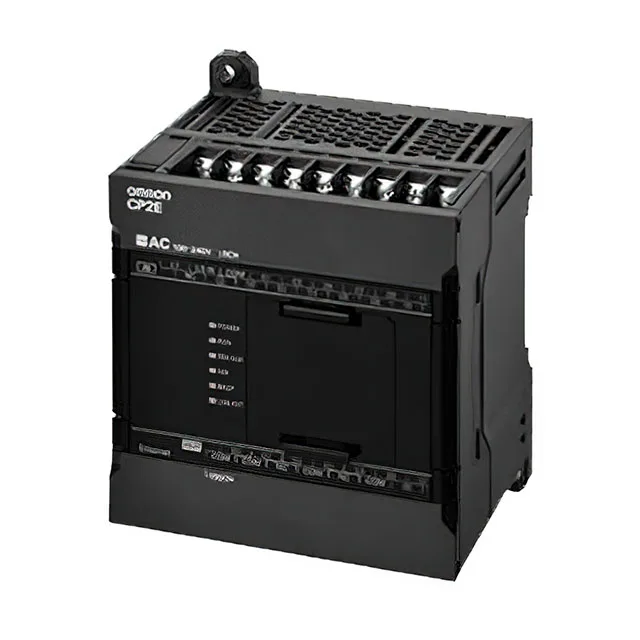

The Omron CP2E-N20DR-D is a CP2E series I/O module providing 12 digital inputs and 8 relay outputs, supplied at 24 VDC. It mounts on DIN rail with screw terminals and operates from -20°C to 60°C. This is the relay-output variant for switching higher-current loads directly—up to the relay’s rated capacity—without external interposing relays.
Relay vs transistor: picking the right output type
The CP2E-N20DR-D uses relay outputs; its sibling CP2E-N20DT1-D uses solid-state (transistor) outputs. Same 12 + 8 I/O count, same footprint, same screw terminals on the input side. The relay outputs handle inductive, higher-current, or AC loads directly—think contactors, solenoids, small motors. The transistor version switches faster (no mechanical bounce) and lasts longer in high-cycle applications, but drives only DC loads within its current rating. If your panel was specified around CP2E-N20DT1-D, physically swapping to CP2E-N20DR-D fits the rail and input wiring, but the output wiring—load type, voltage, suppression—must be revisited. Relay contacts need snubbing for inductive DC loads; transistor outputs need separate fusing and cannot switch AC.
