What it is and what it does

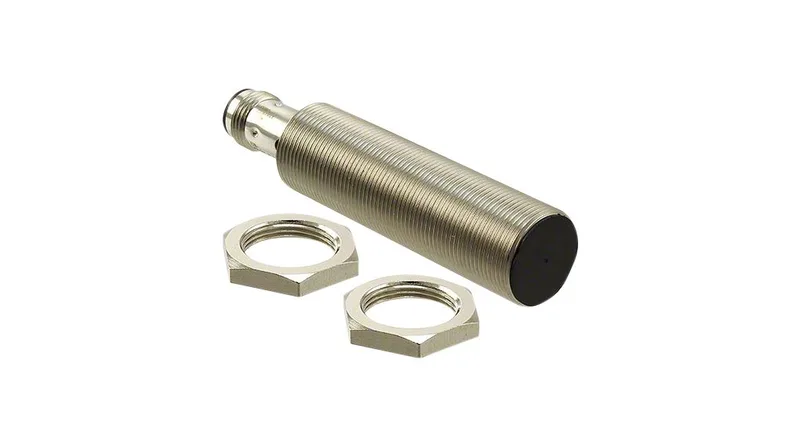

The Omron E2BM18LS08M1B2OMI is an M18 flush-mount inductive proximity sensor from the E2B series, built for detecting ferrous metal targets without physical contact. It switches at 500 Hz, offers an 8 mm sensing distance, and carries a PNP break contact (NC) output — meaning the output is on when no target is present and switches off when metal enters the field. That normally-closed logic suits fail-safe applications where a lost signal should trigger an alarm or stop a machine.
Where you'd use it
You'll see this sensor on conveyor lines, packaging machines, or rotary-index tables — anywhere a metal part needs to be seen reliably in a tight space. The flush-mount body lets you embed it in a bracket or machine frame without worrying about false triggers from surrounding metal. Rated IP67, it shrugs off coolant splash, washdown, and the kind of dust you find out on a lube route.
Key ratings — what they mean for fit
Sensing distance is 8 mm, which is standard for an M18 flush-mount sensor. That means it reliably picks up a mild steel target at that gap; derate by roughly 40% for aluminum or brass. Switching frequency of 500 Hz is fast enough for counting parts on a moderate-speed line, but if you're tracking gear teeth or fast-moving cam lobes, you'll want a higher-frequency sensor. The PNP NC output sources 200 mA at 10–30 VDC, so it can drive a PLC input directly or switch a small relay.
