Sensing and sealing

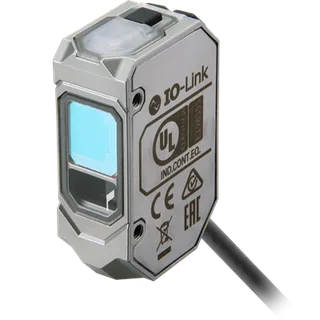

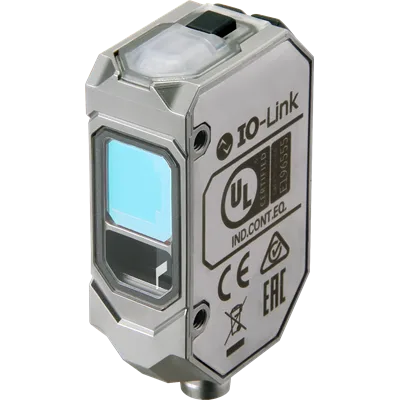

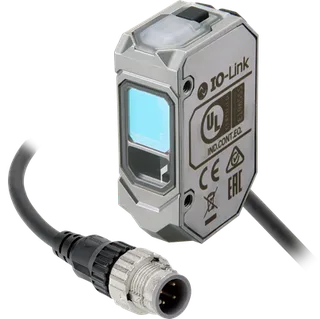

The Omron E3AS-HL500MT-M3J 0.3M is a compact CMOS laser photoelectric sensor from the E3AS-HL family, rated IP67 and IP69K for high-pressure washdown environments. It outputs PNP and supports IO-Link COM3 for configuration and diagnostics, with a 500 mm sensing distance on a spot beam. The 0.3 m M8 pigtail keeps the connection point close to the sensor body.
Power and mounting
Operates on 10-30 VDC, PNP output, selectable Light-ON/Dark-ON. SUS 316L housing rated IP67 and IP69K.
