The EE-SPX406-W2A is a slot-type photomicrosensor (through-beam) with the emitter and receiver integrated into a single plastic housing. Sensing distance is max 3.6 mm, so it is meant for detecting the presence of an object passing through the slot — an edge of a moving web, a part in a feeder track, or a flag on a linear actuator. Output is NPN, normally open, Light-ON operation (output on when light path is blocked). Supply voltage 5 to 24 VDC, pre-wired with a cable. The short slot gap defines the application: confined area, close-range detection only.

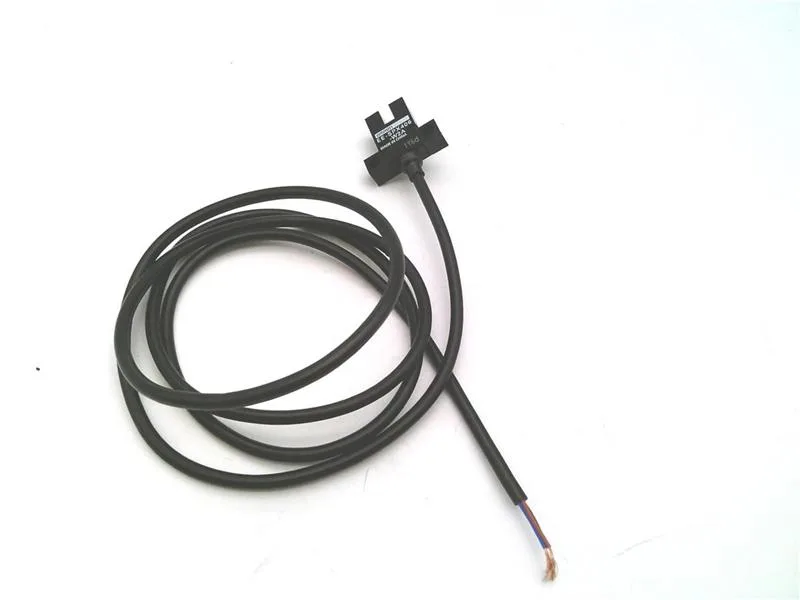

Omron EE-SPX406-W2A Photomicrosensor, Slot, NPN, 3.6 mm
MPNEE-SPX406-W2A
Omron EE-SPX406-W2A slot-type photomicrosensor, through-beam, NPN output, Light-ON, pre-wired, 5–24 VDC, 3.6 mm max sensing distance.
$110.73Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing method | Through-beam |
| Type | Photomicro |
| Light source | GaAs Infrared LED |
| Parameter | Value |
|---|---|
| Supply voltage | 5 to 24 VDC |
| Parameter | Value |
|---|---|
| Connection | Pre-wired |
| Parameter | Value |
|---|---|
| Output | NPN |
| Body type | Standard |
| Operation | Light-ON |
| Housing material | Plastic |
| Product life cycle | Active |
| Max sensing distance | 3.6 mm |
Product details
Frequently asked questions
What is the output type of the EE-SPX406-W2A?
NPN open-collector output, Light-ON operation.
MPN
EE-SPX406-W2A
