What this light curtain does on the line

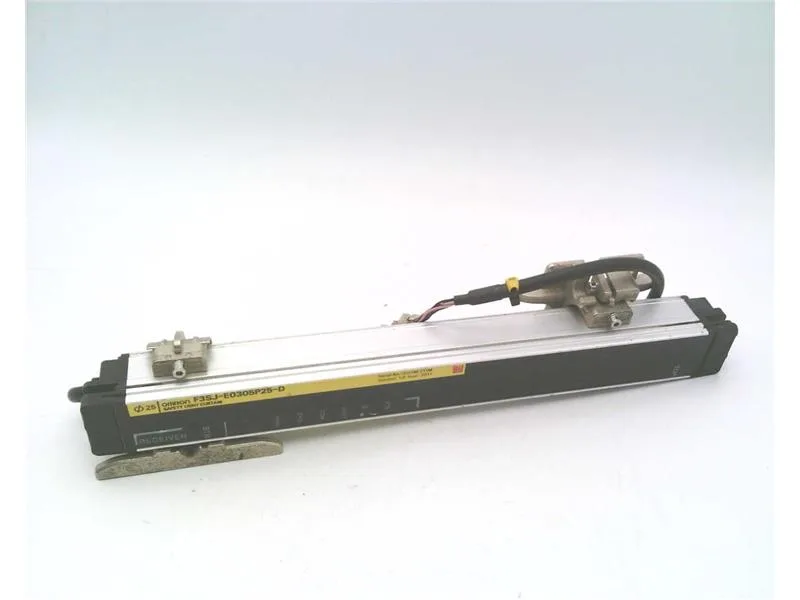

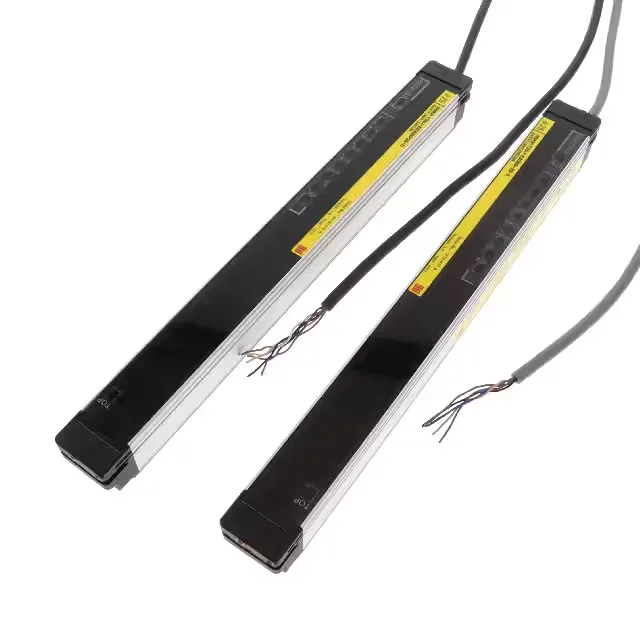

The Omron F3SJ-E0305P25 is a Type 4 safety light curtain from the F3SJ-E series, built for hand protection at access points. Its 25 mm detection capability catches fingers reaching into the hazard zone — that's finger-protection class per IEC 61496-1, not just presence detection. With 14 beams on a 20 mm pitch, it covers a 305 mm protective height, enough for most conveyor infeed or machine-loading openings. Operating range spans 0.2 m to 7.0 m, so you can set the emitter-receiver pair across a work cell or close up against a small press.
The 25 mm detection capability is the spec that decides whether this curtain works for your guarding application. At 25 mm, it stops a hand or individual fingers from reaching through — not a whole arm or torso. If your risk assessment calls for finger protection (typically a 14 mm detection), this curtain won't meet it. But for hand protection at a press brake, robot cell, or palletizer infeed, it's the right resolution. The 0.2 m minimum operating range means you can mount the emitter and receiver as close as 200 mm apart. That matters when guarding a small opening on a compact machine where you can't pull the pair back. The 7.0 m maximum range covers most single-machine guarding zones; for longer spans, you'd step up to the extended-range F3SJ-E models. IP65 rating means the curtain body and optics withstand washdown from hoses and dust ingress — suitable for food-and-bev lines, machining coolant environments, or outdoor packaging areas. Not submersible (that would be IP67), but it handles splashing and condensation without fogging the lenses.
Runs on 24 VDC — standard for safety circuits in industrial control panels. No special power supply needed; tap into the same 24 V bus that feeds your safety relay or configurable controller. The emitter and receiver each draw under 0.5 A, so loop power is light. Protective height of 305 mm means the sensing zone starts at the first beam and ends at the last. When mounting, align the bottom beam at the lowest reach-in point per your risk assessment. The 20 mm beam pitch gives even coverage — no gaps between beams that a hand could slip through. If your line runs near ovens or in a foundry, check the upper limit against ambient heat near the curtain.
