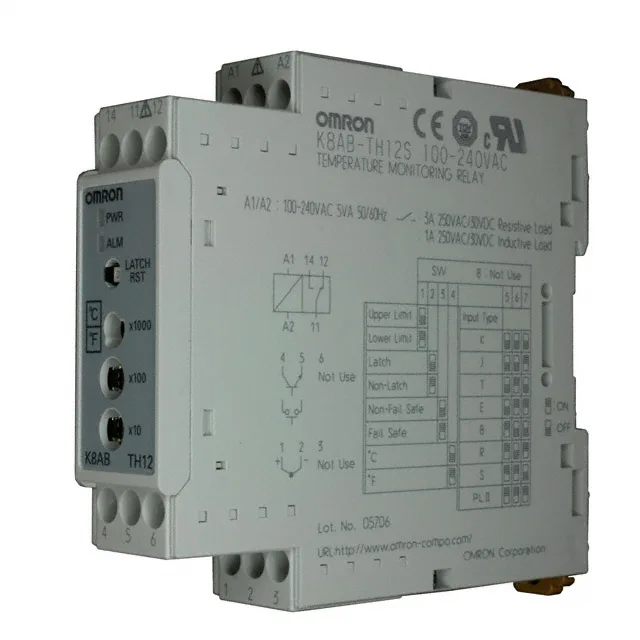

Omron K8AB-TH12S AC100-240 Temperature Monitor, 0–1700°C
Omron K8AB-TH12S AC100-240 temperature monitoring relay, series K8AB-TH, SPDT output, trip range 0–1700°C, 100–240 VAC supply, DIN rail mount.
Specifications
| Parameter | Value |
|---|---|
| Series | K8AB-TH |
| Type | Temperature Monitoring |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | No Delay |
| Trip range | 0°C ~ 1700°C |
| Contact rating @ voltage | 3A @ 250VAC |
Product details
Frequently asked questions
Where can I buy the K8AB-TH12S AC100-240?
This obsolete temperature monitor is sourced to order against an RFQ through independent distribution. Current pricing and availability are confirmed at quote — submit a request with your target quantity.
Lifecycle and sourcing reality
The Omron K8AB-TH12S AC100-240 is marked obsolete by the manufacturer. Sourcing runs through independent distribution — quantities are confirmed at RFQ, and the part is quoted to order against the BOM line.
What the ratings mean for fit
The trip range spans 0°C to 1700°C, covering thermocouple inputs for furnace, kiln, and high-temperature process monitoring. The SPDT (1 Form C) output switches at 3 A at 250 VAC — enough to drive an alarm annunciator or a contactor coil directly without an intermediate relay. Supply voltage is 100–240 VAC, so it connects straight to line power in a standard control panel without a separate transformer. The DIN-rail housing clips onto the top-hat rail alongside other panel devices.
Deployment context
This is a temperature monitoring relay — it watches a thermocouple or RTD input and trips the SPDT contact when the process crosses the setpoint. Typical use is in industrial ovens, packaging seal bars, or plastic extrusion zones where a single over-temperature alarm is the safety boundary.
