What a magnetic-latching DPDT plug-in relay actually does

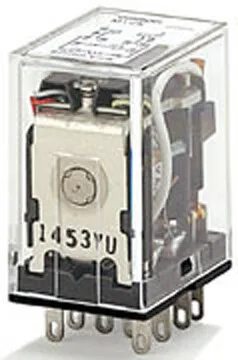

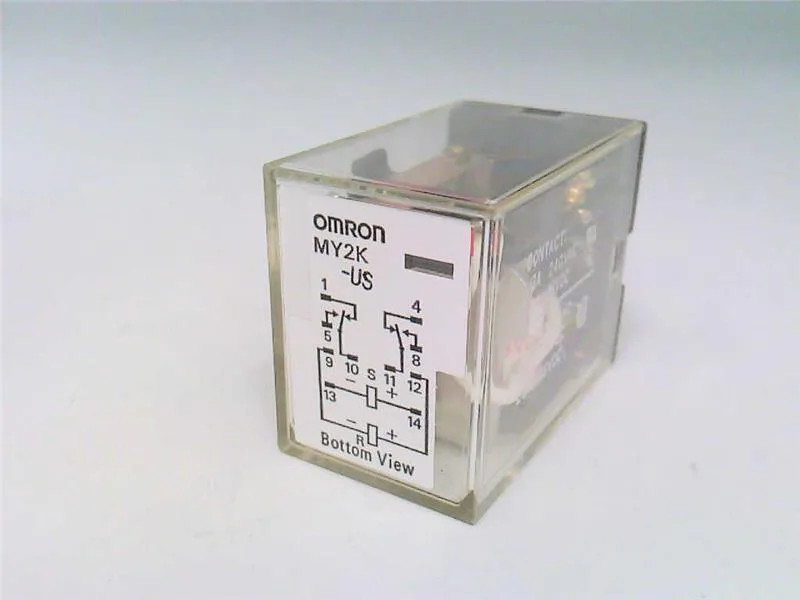

The Omron MY2K-US-DC48 is a magnetic-latching relay in the MYK family, defined as a DPDT (2-pole) plug-in device whose contacts hold their last position after the coil is de-energized — ideal for memory- and data-transmission circuits where the output state must survive a power interruption. The set and reset coils run at 48 VDC with a set power of approximately 1.3 W and a reset power of approximately 0.6 W. Two separate coil inputs on the same relay let a logic pulse flip the contacts in either direction without continuous coil hold current, which is the defining advantage of the latching form factor over a standard non-latching DPDT relay.
Contact ratings and what they mean for the load
Maximum switching current is 3 A with a maximum switching voltage of 250 VAC or 125 VDC. The headline 3 A figure is the resistive ceiling; on inductive loads the ratings drop to 0.8 A at 220 VAC and 1.5 A at 24 VDC, while on resistive loads they hold at 3 A at both 220 VAC and 24 VDC. Switching power tracks the same split: 176 VA / 36 W on inductive loads versus 660 VA / 72 W on resistive loads. For a buyer matching this relay to a real load, the duty category — not the headline 3 A — is the figure that governs fit: a relay driving a solenoid or small contactor coil must be sized against the 0.8 A inductive rating, not the 3 A resistive figure.
Low-level switching and panel-side integration
The minimum load of 1 mA at 1 VDC means the contacts are rated for dry-circuit and low-level signal switching, so the relay can sit at the boundary between logic-level telemetry and a higher-current output without a separate interposing relay. Operating temperature runs from -55 °C to 60 °C, covering both unheated outdoor cabinets and standard panel interiors. The plug-in terminal style fits the standard MY-series octal/ blade socket pattern used across the Omron MY family, so panel wiring is a matter of matching the correct socket and pinning the two coil inputs plus the DPDT commons to the wiring layout. RoHS compliance is confirmed on the device record.
Sourcing posture for MY2K-US-DC48
The lifecycle stage is recorded as mature. No stock or lead-time figures are published on this page.
