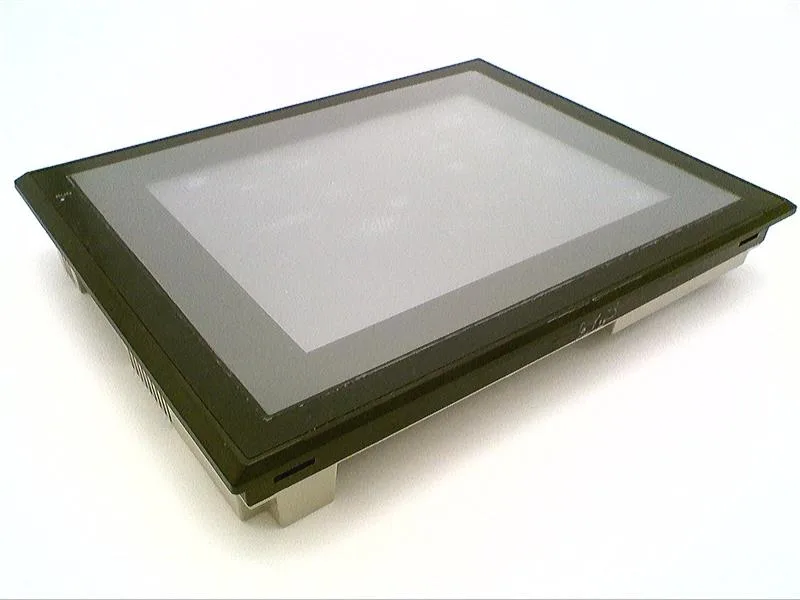

Omron NS10-TV01B-V2 10.4" Color Touchscreen HMI, Obsolete
Omron NS series 10.4" color touchscreen HMI, 24 VDC, IP65/NEMA 4 front panel, memory card interface.
Specifications
| Parameter | Value |
|---|---|
| Series | NS |
| For use with / related products | Multiple Manufacturer, Multiple Product |
| Parameter | Value |
|---|---|
| Display type | Color |
| Display technology | Touchscreen |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Ingress protection (IP / NEMA) | IP65 - Dust Tight, Water Resistant; NEMA 4 |
| Operating temperature | 0°C ~ 50°C |
| Parameter | Value |
|---|---|
| Features | Memory Card Interface |
| Case color | Black |
| Size - display | 10.4" |
Product details
Frequently asked questions
What replaces the NS10-TV01B-V2?
No official manufacturer successor order code is recorded for this part. For a form-fit-function replacement, you would need to evaluate current Omron HMI families (such as the NB or NV series) against the NS10-TV01B-V2's panel cutout, communication protocol, and software project file compatibility.
How can I source the NS10-TV01B-V2?
Since it is obsolete, sourcing is through independent distributor channels that hold surplus or last-time-buy inventory. Submit an RFQ for a quote; availability and pricing vary by lot.
What are the key specifications of the NS10-TV01B-V2?
It is a 10.4-inch color touchscreen HMI running on 24 VDC, with an IP65/NEMA 4 rated front panel and a memory card interface. Operating temperature range is 0°C to 50°C.
The Omron NS10-TV01B-V2 is a 10.4-inch color touchscreen HMI from the NS series, designed for operator interface and machine visualization in industrial automation systems. It runs on a 24 VDC supply and presents a color display for monitoring and controlling processes, with a memory card interface for recipe or data logging storage. The front panel carries an IP65 rating (dust-tight, water-resistant) and NEMA 4 classification, meaning it withstands washdown environments and hose-directed water — suitable for food, beverage, or chemical processing lines where the enclosure is panel-mounted with the display exposed.
Environmental and integration notes
Rated for 0°C to 50°C operating ambient, so it is suited for conditioned control cabinets but not unheated outdoor enclosures or freezer environments. The IP65/NEMA 4 front means the display surface and bezel tolerate washdown sprays — the rear of the unit (typically IP20) must remain inside the enclosure.
