What the NX-EC0122 is, in the panel-builder's hand

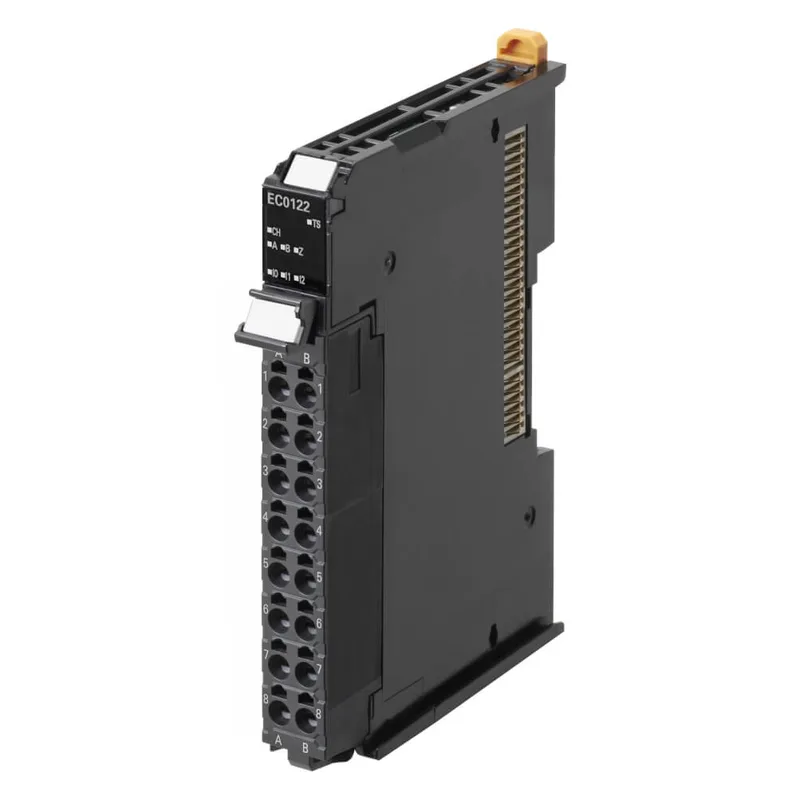

The Omron NX-EC0122 is an incremental encoder input module on the NX series I/O platform, wired through a spring-cage terminal block on a standard DIN rail foot, and is specified for one digital encoder channel at PNP 24 V. It belongs to the NX I/O family and pairs with other NX slices on the same backplane, which is how an integrator stacks encoder, digital, and analog cards next to a Sysmac NJ/NX controller without re-engineering the bus.
Ratings that decide the fit
The operating envelope is 0 °C to 55 °C, which is the ambient range the slice runs to without derating — above that, follow the thermal curve in the NX system manual for cabinet layout. Approvals on the agency line are CE, cULus, C-Tick, KC, Lloyd, and NK, so the same SKU can ship into CE-marked machinery, North American panels, Korean installations, and Lloyd/NK-classed marine systems without a regional swap. Termination style is the spring-cage variant of the NX family, so wiring practice is consistent with the rest of the NX I/O line — strip length and ferrule rules are governed by the family specification rather than this single card.
Where this class of card lives on a machine
An incremental encoder input module reads a pulse train from a rotary or linear encoder and turns it into position and speed data the controller can use — the NX-EC0122 is the slice that closes that loop for one axis on an NX backplane. The NX-series family is the I/O tier built around Omron's Sysmac automation platform, which is where the encoder data feeds motion or position control blocks without going through a separate counter card.
