Omron S8VKG03024

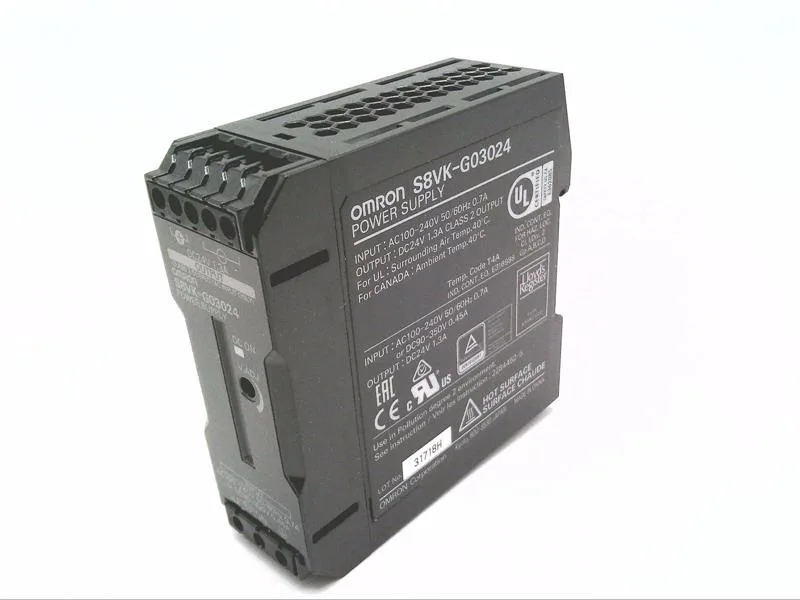

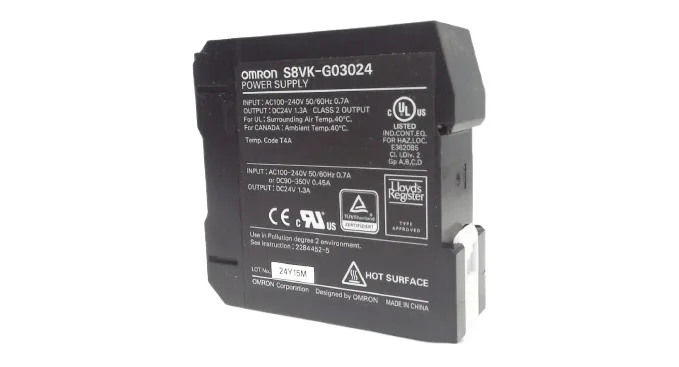

Omron S8VKG03024 DIN Rail Power Supply, 24V 1.3A 30W

MPN S8VKG03024

Omron S8VK-G Series, Switching Power Supply, 30 W, 24 V DC, 1.3 A, Single Phase, DIN Rail Mount, IP20.

$31.37 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8VKG03024 specifications
ParameterValue
SeriesS8VK-G
Input voltage100 to 240 V AC
Output current1.3 A
IP ratingIP20
MountingDIN Rail
Housing materialPlastic

Product details

The S8VKG03024: The 30 W output at 24 VDC is sized for a modest control loop — think a small PLC brick, a handful of 4-20 mA isolators, or a few relays. The 1.3 A continuous output is the number to watch when tallying your DC load; don't plan on parallel operation to double current unless you account for the derating in the manual. Input is single-phase only, so it won't run on a three-phase delta panel without a step-down transformer. DIN-rail mount with an IP20 enclosure — it snaps into any standard 35 mm rail inside a cabinet. The 1.26-inch width (one standard TE) means it takes up minimal space on the rail, leaving room for a breaker and a terminal block in a typical 8-inch wide enclosure. Screw terminals accept 24 to 12 AWG, which covers most panel wiring. The green LED status indicator gives a quick visual on output health — useful during commissioning when you're tracing a 24 V loop.

Protection and compliance

Built-in overload and overvoltage protection with automatic reset — it recovers on its own after a fault clears, which saves a service call for a blown fuse on a transient load. The hold-up time of 23 ms minimum (154 ms under lighter load) keeps the DC bus alive through a brief line dip, enough for a PLC to finish its scan and enter a safe state. Lloyd's Standards EN60204-1 PELV compliance means it's suitable for marine and industrial machinery applications where safety extra-low voltage is required. MTBF is rated at 135,000 hours — roughly 15 years continuous operation at 25 °C. The switching topology keeps efficiency around 86%, which keeps heat dissipation low in a sealed cabinet.
