The C11E4TM040L: The 40 A thermal-magnetic trip handles overloads and short-circuits in one device — the thermal element protects against sustained overcurrent (e.g., a stalled motor or overloaded feeder), while the magnetic element clears high-fault events instantly. Mounts on a backplate (not DIN rail) with front-connect terminals; the Everlink lugs accept copper or aluminium conductors up to 95 mm² rigid or 70 mm² flexible. Panel builders should account for the 108 mm width, 137 mm height, and 80 mm depth — 12 module pitches at 9 mm each.

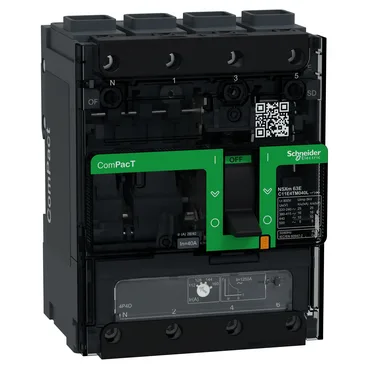

Schneider C11E4TM040L ComPacT NSXm 40A 4P Thermal-Magnetic M
MPNC11E4TM040L
Active
Schneider Electric, ComPacT NSXm, circuit breaker, 40 A, 4P, TM-D, 16 kA at 415 V AC.
$281.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product name | ComPacT NSXm |
| Product range | ComPacT |
| Product/component type | Circuit breaker |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| Rated current (In) | 40 A at 40 °C |
| Poles configuration | 4P |
| Rated operational voltage (Ue) | 690 V AC 50/60 Hz |
| Rated insulation voltage (Ui) | 800 V AC 50/60 Hz |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Network type (AC/DC) | AC |
| Network frequency | 50/60 Hz |
| Utilisation category | Category A |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Electrical durability (cycles) | 20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| Mechanical durability (cycles) | 20000 cycles |
| Parameter | Value |
|---|---|
| Mounting support | Backplate |
| Control type | Toggle |
| Local signalling/indication | Flag (green) for presence of auxiliary contacts |
| Number of 9 mm pitches | 12 module |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...70 °C |
| Storage ambient temperature | -50...85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Relative humidity | 0...95 % |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-2 |
| Parameter | Value |
|---|---|
| [Icu] rated ultimate short-circuit breaking capacity | 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Parameter | Value |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Trip unit protection functions | LI |
Product details
Frequently asked questions
How do I get current pricing and availability for C11E4TM040L?
Submit an RFQ through this listing; pricing and stock are confirmed at quote time through independent distribution channels.
What compliance documentation does Schneider provide for C11E4TM040L?
The breaker is certified to EN/IEC 60947-2 and carries an IP40 protection rating. For RoHS, REACH, and UL documentation, request the manufacturer's compliance pack with your RFQ.
