Schneider Electric C11E4TM050L — Miniature Circuit Breakers (MCB)

Schneider Electric C11E4TM050L ComPacT NSXm 4P 50A TM-D, 16

MPNC11E4TM050L
Active

Schneider Electric ComPacT NSXm, circuit breaker, 4P, 50 A, TM-D, 16 kA at 415 V AC, EN/IEC 60947-2, current production.

$281.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11E4TM050L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11E4TM050L — Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11E4TM050L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11E4TM050L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11E4TM050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11E4TM050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11E4TM050L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
C11E4TM050L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

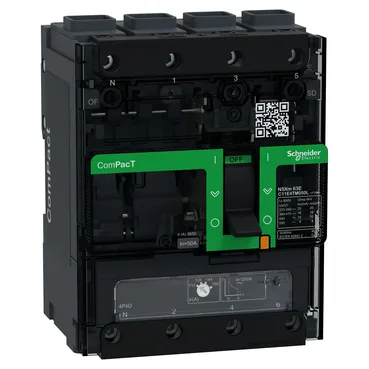

The Schneider Electric C11E4TM050L is a ComPacT NSXm 4-pole circuit breaker rated 50 A at 40 °C, with a TM-D thermal-magnetic trip unit and a breaking capacity of 16 kA at 415 V AC (performance level E).

Mounting and connections — what fits where

The 9 mm pitch works out to 12 modules wide — 108 mm width, 137 mm height, 80 mm deep. That's a standard DIN-rail footprint for the NSXm family; you'll need 12 module spaces on the rail. Connection terminals are Everlink lugs: one per pole, accepting 2.5–95 mm² rigid or stranded aluminium/copper, or 2.5–70 mm² flexible copper. Connection pitch is 35 mm with spreaders, 27 mm without. Both upside and downside connections are front-facing, so the breaker can be wired from the front of the panel without rotating it. The grey RAL 7016 colour is the standard industrial finish.

Frequently asked questions

Where can I buy C11E4TM050L and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

What are the key ratings for C11E4TM050L?

The breaker is rated 50 A at 40 °C, 4 poles, with a breaking capacity of 16 kA at 415 V AC (performance level E). It uses a TM-D thermal-magnetic trip unit and complies with EN/IEC 60947-2.

What compliance documentation does Schneider provide for C11E4TM050L?

The breaker is certified to EN/IEC 60947-2 for overcurrent protection and isolation. It carries IP40 and IK07 protection ratings per IEC 60529 and IEC 62262, and is rated for pollution degree 3 per IEC 60664-1.
