Schneider Electric C11F6TM050L — Miniature Circuit Breakers (MCB)

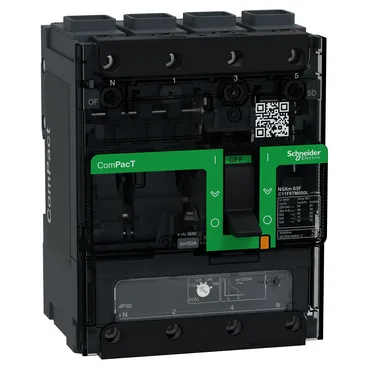

Schneider C11F6TM050L ComPacT NSXm 4P 50A MCCB, 36kA

MPNC11F6TM050L
Active

Schneider Electric ComPacT NSXm, 4P, 50 A, thermal-magnetic TM-D trip unit, 36 kA at 415 V AC, grey (RAL 7016).

$234.63Ref. price · indicative, final on quote
Schneider Electric C11F6TM050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11F6TM050L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11F6TM050L — Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11F6TM050L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11F6TM050L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11F6TM050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11F6TM050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11F6TM050L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity85 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
C11F6TM050L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

Terminals accept one Everlink lug per pole: wire size 2.5…95 mm² for rigid or stranded aluminium/copper, or 2.5…70 mm² for flexible copper. The 35 mm connection pitch (27 mm without spreaders) matches standard busbar and cable-lug spacing. IK07 impact resistance handles incidental tool contact during commissioning. The grey RAL 7016 housing is the standard Schneider panel colour — no mismatch in a mixed-brand cabinet.

Certified to EN/IEC 60947-2. Suitability for isolation confirmed per that standard.

Frequently asked questions

How do I get current pricing and availability for C11F6TM050L?

Submit an RFQ through this listing. The part is sourced to order via independent distribution; availability and current pricing are confirmed at quote time. No stock count or price figure is published here because both fluctuate with market conditions.

What is the breaking capacity of the C11F6TM050L?

Performance level F: 36 kA at 415 V AC. That is the maximum fault current the breaker can safely interrupt at that voltage, per IEC 60947-2. For panel SCCR calculations, this is the value to use for the line-side fault rating.

What is the C11F6TM050L's wire range?

One Everlink lug per pole accepts 2.5…95 mm² rigid or stranded aluminium/copper, or 2.5…70 mm² flexible copper. The connection pitch is 35 mm with spreaders, 27 mm without. Front-connected on both line and load sides.
