Schneider Electric HMIBMIEA5DD110L

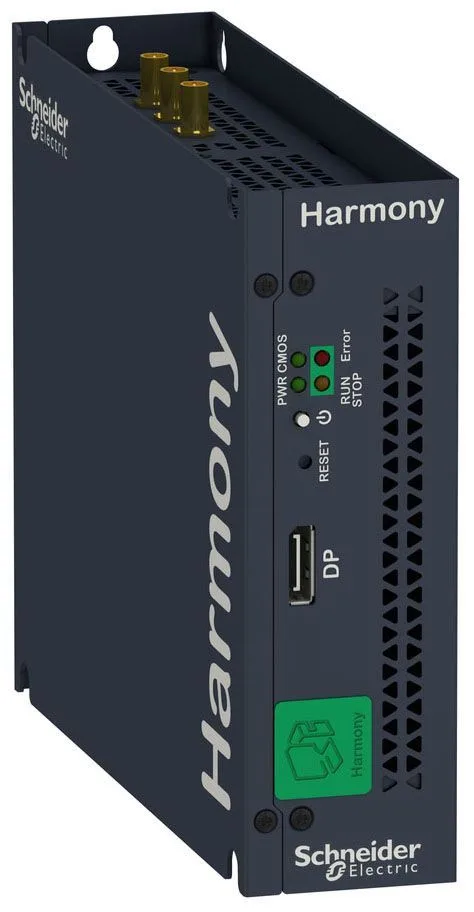

Schneider HMIBMIEA5DD110L Harmony iPC modular box PC (discontinued)

MPNHMIBMIEA5DD110L
Active

Schneider HMIBMIEA5DD110L — now discontinued, supplied from remaining surplus and broker stock.

$1,850.00Ref. price · indicative, final on quote
Schneider Electric HMIBMIEA5DD110L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMIBMIEA5DD110L key specifications
ParameterValue
Main typeBasic Optimised
Control typeON/OFF button
Type of coolingFanless
Range of productHarmony iPC
Product or component typeModular box PC
Supply voltage limits9.6...28.8 V
Supply voltage24 V DC power supply 100...240 V AC power supply
Inrush current2.03 A
Mounting locationBook mounting Flat mounting Wall mounting
Electrical connectionScrew connector, connector type: pin, 1 way, circuit application: ground - location: bottom Connector, connector type: SMA, 3 ways - location: top
Operating altitude6561.68 ft (2000 m) IEC 60664-1
Width7.4 in (187 mm)

All specifications

HMIBMIEA5DD110L additional specifications
ParameterValue
Height5.9 in (150 mm)
StandardsClass A group 1 IEC 55011 IEC 61000-6-4 IEC 61131-2 FCC part 15 UL 60950
CategoryUS10MC222577
Directives2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive
Quality labelsCE
Watchdog timer1...255 ms
Number of slots1 slot(s) for mini PCI Express full-size with optional interface plate,
Software packageNode-RED and system nodes restore IIoT Wiring Operating System Restore McAfee white listing installer cyber security license not included EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure Operator Terminal Expert run time HMI license not included EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included
Device short nameModular BOX PC basic Optimized
Cyber secured bootSecure password boot UEFI
Display resolution3200 x 2000 pixels at 60 Hz
Memory description4 GB RAM DDR3 internal not expandable)
Accessory (separate part destination)PC panel HMIDM modular display
Ambient air temperature for operation32...122 °F (0...50 °C) by default) IEC 60068-2-2 32...122 °F (0...50 °C) flat mounting 32...113 °F (0...45 °C)mini PCIe 32...113 °F (0...45 °C) flat mountingmini PCIe
Number of slots available for expansion1.0 mini PCIe

Product details

Overview

The HMIBMIEA5DD110L is a Schneider Harmony iPC modular box PC in the Basic Optimised variant, running on a 24 V DC supply with 4 GB of non-expandable DDR3 RAM and a 128 GB eMMC for OS and application storage. It measures 187.96 mm wide by 149.86 mm tall, is fanless, and carries CE, CULus, and UL 60950 certifications for IT equipment.

Schneider discontinued the HMIBMIEA5DD110L effective 2025-04-30; remaining units are available through surplus and broker channels only. For a line-down or last-time-buy situation, an RFQ confirms real-time availability and lead time from our sourcing network.

MPN
HMIBMIEA5DD110L
