Overview

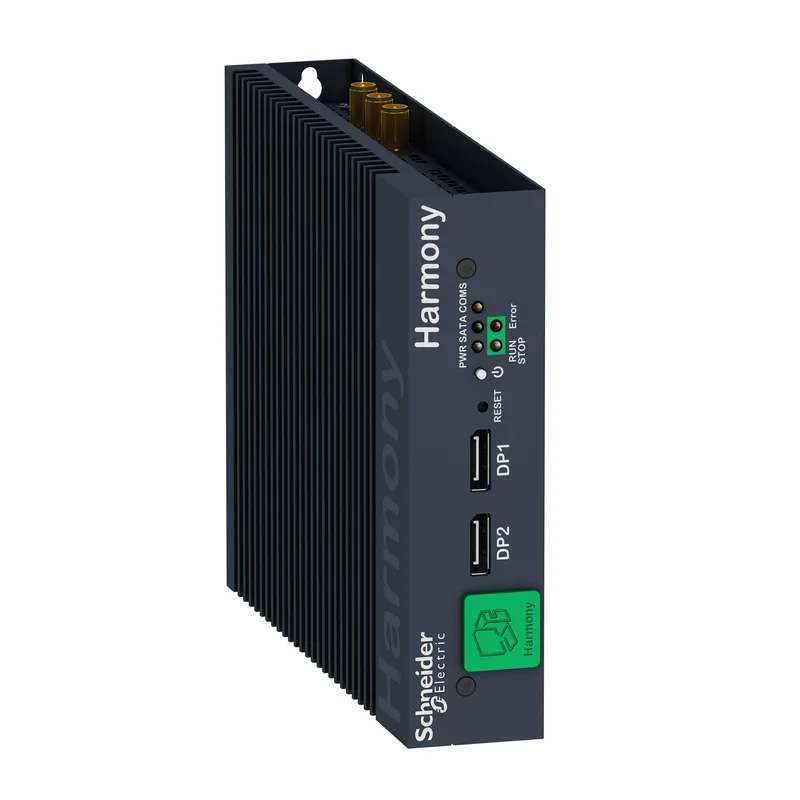

The HMIBMOMA5DD1E01 is a Schneider Harmony iPC modular box PC, order code HMIBMOMA5DD1E01, built around an Intel Atom E3930 processor with 4 GB DDR3 RAM and a 64 GB SSD. It runs fanless on a 240 V AC supply, rated IP40 for in-cabinet mounting, and carries CE, UL, CSA, ATEX, and IECEx certifications.
This box PC serves as a headless control node — no display, but drives up to 3200 x 2000 pixels at 60 Hz over its integrated graphics. The 4 GB DDR3 RAM (internal, not expandable) and 64 GB SSD size the runtime for moderate HMI or data-logging applications; the fanless cooling keeps dust and vibration out of the enclosure. A watchdog timer configurable from 1 to 255 ms monitors application health. The single M.2 SSD slot and PCIe expansion allow storage or I/O upgrades without replacing the unit. Windows 10 support means standard industrial software stacks run without custom porting.
Applications
Harmony iPC box PCs of this class are deployed as edge controllers, data concentrators, or headless HMI servers in packaging lines, material-handling cells, and water-treatment skids. The fanless, IP40-rated chassis suits cabinet-mounted environments where airflow is limited and particulate ingress is a concern.
The HMIBMOMA5DD1E01 carries active compliance certifications including CE, CULus, ATEX, IECEx, and CSA. The product is listed with a standard 18-month warranty. No end-of-life notification is indicated in the current documentation; sourcing is via RFQ for current lead time and minimum order quantities.
