Overview

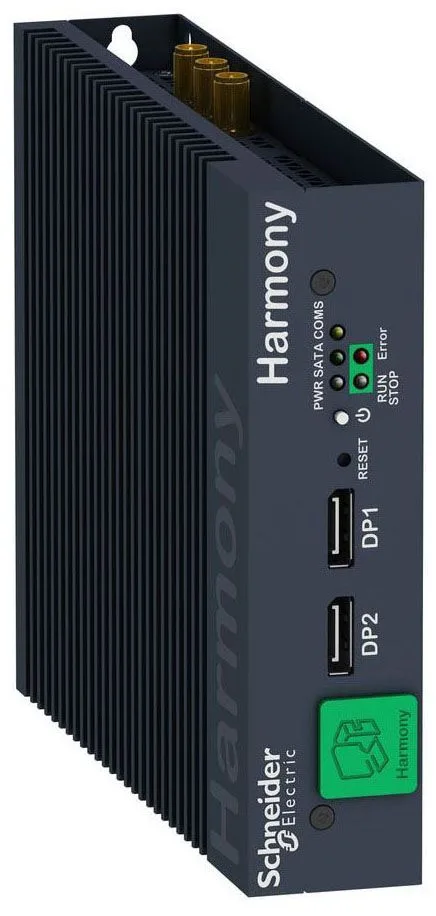

The HMIBMOMA5DD1101 is a Schneider Harmony iPC modular box PC, part of the Optimised line, built around an Intel Atom E3930 processor with 4 GB DDR3 RAM and a 64 GB SSD. It runs on 240 V AC supply, is rated IP40 for in-cabinet use, and is fanless for silent, low-maintenance operation.
This box PC serves as a compact computing platform for HMI, data acquisition, and edge control applications. The Intel Atom E3930 provides sufficient processing for visualization and light logic tasks, while the 4 GB DDR3 RAM (internal, not expandable) and 64 GB SSD handle the operating system and application storage. It supports Windows 10, giving access to standard SCADA and HMI software stacks. The unit drives displays up to 3200 x 2000 pixels at 60 Hz via its integrated graphics, and includes a watchdog timer configurable from 1 to 255 ms for system supervision. Fanless cooling eliminates moving parts, improving reliability in dusty or vibration-prone environments.
Applications
Harmony iPC box PCs are deployed in industrial automation as headless controllers or as the compute core behind operator interface terminals. Typical roles include machine-level data logging, recipe management, and running PC-based HMI software on the plant floor.
The HMIBMOMA5DD1101 carries certifications including CE, cULus, ATEX, IECEx, FCC, CSA, and EAC, indicating it is an active, globally compliant product. No end-of-life notice is present in the evidence; it remains a current offering in the Harmony iPC range.
