Schneider Electric LC2K12015P7 — Contactors

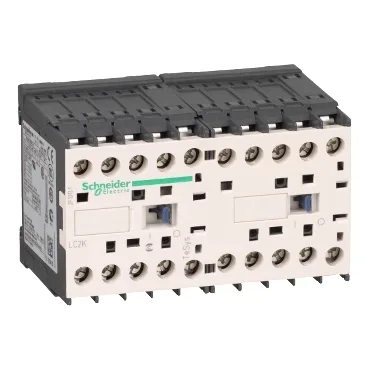

TeSys K LC2K12015P7 Reversing Contactor, 3P, AC-3 12A, 230VA

MPNLC2K12015P7

Obsolete

Schneider Electric TeSys K reversing contactor, 3P, AC-3 12 A at 440 V, 1 NC, 230 V AC coil, IP20, preassembled with reversing power busbar.

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC2K12015P7 — Identification
Parameter	Value
Product / component type	Reversing contactor
Series / range	TeSys
Application	Resistive load Motor control

LC2K12015P7 — Ratings & Performance
Parameter	Value
Rated operational voltage (Ue)	Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation category	AC-3 AC-1 AC-4

LC2K12015P7 — Contacts & Poles
Parameter	Value
Pole configuration	3P

LC2K12015P7 — Environmental
Parameter	Value
IP degree of protection	IP20 conforming to VDE 0106
Operating altitude	2000 m without derating
Mechanical robustness	Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degree	TC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardance	V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102

LC2K12015P7 — Mechanical
Parameter	Value
Width	90 mm
Height	58 mm
Depth	57 mm

Product details

The Schneider Electric LC2K12015P7 is a TeSys K reversing contactor, 3-pole, rated for AC-3 duty at 12 A up to 440 V, with a 230 V AC coil and one NC auxiliary contact. It comes preassembled with the reversing power busbar, so it's ready to bolt into a panel for forward/reverse motor control — no separate busbar kit to order. The IP20 finger-safe enclosure (VDE 0106) suits it for enclosed panel mounting, not open washdown areas.

Utilisation categories span AC-1, AC-3, and AC-4. The AC-3 rating is 12 A at 440 V.

Frequently asked questions

What are the key ratings of the LC2K12015P7?

It is a 3-pole reversing contactor rated AC-3 at 12 A up to 440 V, with a 230 V AC coil and one NC auxiliary contact. The power circuit is rated for 690 V AC 50/60 Hz, and the enclosure is IP20.
