Schneider Electric LC3K09P7 — Contactors

Schneider LC3K09P7 TeSys K Star Delta Starter, 9A, 230V AC C

MPNLC3K09P7
Obsolete

Schneider Electric TeSys K series, LC3K09P7 star delta starter, 3 x 3P (3NO) power poles, 9 A AC-3, 230 V AC coil, IP20.

Schneider Electric LC3K09P7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC3K09P7 — Identification
ParameterValue
Product / component typeStar delta starter
Series / rangeTeSys
ApplicationMotor control
LC3K09P7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3
LC3K09P7 — Contacts & Poles
ParameterValue
Pole configuration3 x 3P
LC3K09P7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessVibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor closed, on X axis: 10 Gn for 11 ms Shocks contactor opened, on X axis: 6 Gn for 11 ms Shocks contactor closed, on Y axis: 15 Gn for 11 ms Shocks contactor opened, on Y axis: 10 Gn for 11 ms Shocks contactor closed, on Z axis: 15 Gn for 11 ms Shocks contactor opened, on Z axis: 10 Gn for 11 ms
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC3K09P7 — Other specifications
ParameterValue
Device short nameLC3K
Device presentationPre-wired
Power pole contact composition3 x 3 NO
Ambient air temperature for storage-50...80 °C

Product details

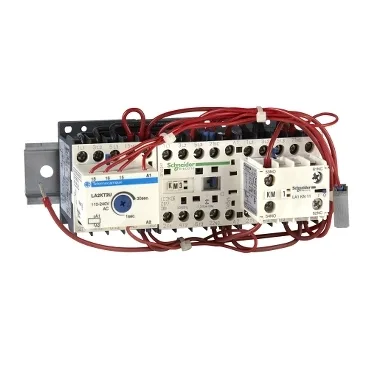

The Schneider LC3K09P7 is a TeSys K star delta starter — a pre-wired assembly combining three contactors in a single package for reduced-voltage starting of three-phase induction motors. It is configured as 3 x 3P (three normally-open power poles per contactor), rated for AC-3 motor-switching duty at 9 A, with a 230 V AC coil. The IP20 finger-safe enclosure (per VDE 0106) suits panel-mount installations where the starter is housed inside a control cabinet.

Sourcing Reality — Obsolete, No Direct Successor

The LC3K09P7 is classified as obsolete by Schneider Electric. The TeSys K range itself is legacy; current TeSys offerings (e.g., TeSys Deca or TeSys Island) use different form factors and wiring schemes, so a direct drop-in replacement is not available without panel rework.

Frequently asked questions

What is the closest replacement for the LC3K09P7?

No official successor order code is published. The TeSys K range is discontinued; a direct drop-in replacement does not exist. Panel rework with a current TeSys Deca or TeSys Island star-delta assembly is required.

What is the LC3K09P7's range and product name?

It belongs to the TeSys range, product name TeSys K.
