Schneider Electric LG1K065Q707
MPNLG1K065Q707
Active

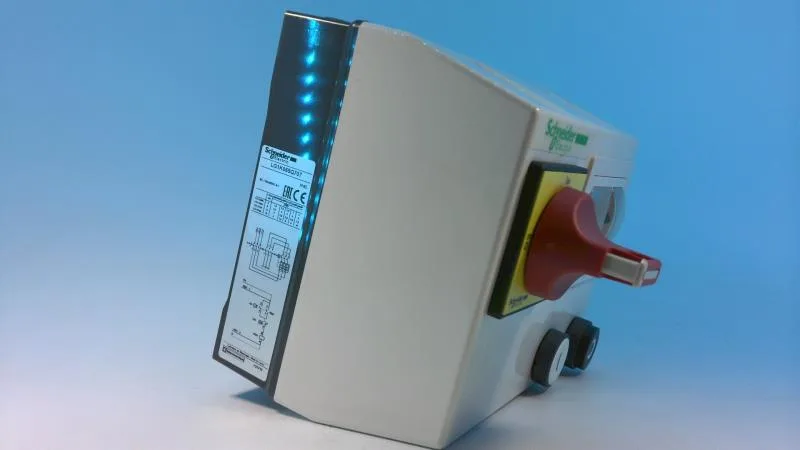

LG1K065Q707 - ENCLOSED by SQUARE D
$193.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button start white I Push-button stop black O Rotary handle emergency stop red |
| Product or component type | Enclosed DOL starter |
| Coil voltage | 380/400 V AC 50/60 Hz |
| Motor power | 0.37 kW at 220/230 V AC 50/60 Hz 0.75 kW at 400/415 V AC 50/60 Hz 1.1 kW at 440 V AC 50/60 Hz |
| Utilisation category | AC-3 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Cable entry number | 4 2 Pg 13 + 2 Pg 16 top 4 2 Pg 13 + 2 Pg 16 bottom |
| Depth | 165 mm |
| Width | 175 mm |
| Height | 165 mm |
| Material | Polycarbonate |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 60947-4-1 IEC 60204-1 |
| Range | TeSys |
| Device short name | LG1K |
| Device application | Safety |
| Device composition | Contactor Switch disconnector Circuit-breaker |
| Environmental characteristic | Standard environment |
| Thermal protection adjustment range | 1.6...2.5 A |
MPN
LG1K065Q707
