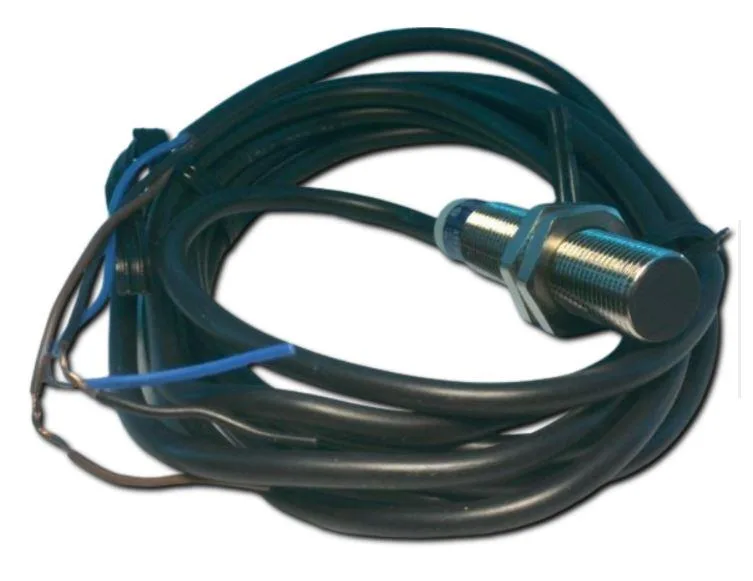

Telemecanique XS1M12AB120 Inductive Sensor, Shielded M12
Telemecanique XS1M12AB120, OsiSense XS series, shielded inductive proximity sensor, 12 mm barrel, 0.2–2 mm sensing distance, NC output, 4–20 mA load, 12–24 VDC, 1500 Hz switching frequency, IP67, 2 m cable.
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 0.2 TO 2 MM |
| Parameter | Value |
|---|---|
| Switching frequency | 1500 HZ |
| Load current | 4 TO 20 MILLIAMPERE |
| Parameter | Value |
|---|---|
| Number of wires | 2 |
| Parameter | Value |
|---|---|
| Body material | NICKEL PLATED BRASS |
| Parameter | Value |
|---|---|
| Operating temperature range | -13 TO 158 DEG F |
Product details
Frequently asked questions
What approvals and compliance documentation does XS1M12AB120 carry?
It carries UL, CSA, and CE approvals. A California Proposition 65 warning (Diisononyl phthalate and Di-isodecyl phthalate) is also listed.
Square D / Telemecanique OsiSense XS1M12AB120 is a shielded M12 tubular inductive proximity sensor from the XS series. Sensing distance is 0.2 to 2 mm, output configuration is NC, and the load current ranges from 4 to 20 mA — the 2-wire DC sensor draws this current when the target is absent, making it a direct fit for standard PLC digital inputs. Switching frequency hits 1500 Hz, adequate for moderate-speed part detection. Enclosure rating is IP67 and NEMA 3/4X/6P/12/13, which covers washdown, hose-down, and outdoor installations. The barrel is nickel-plated brass; the sensing face is PPS. Shielded construction allows flush mounting in metal without derating the sensing range.
