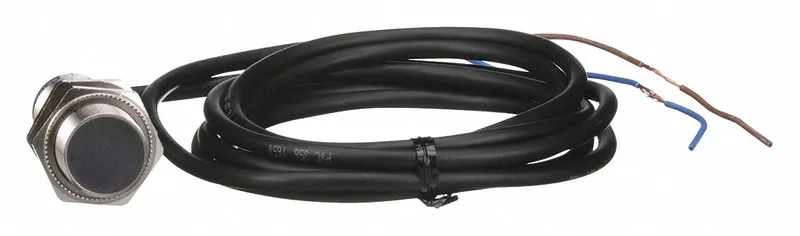

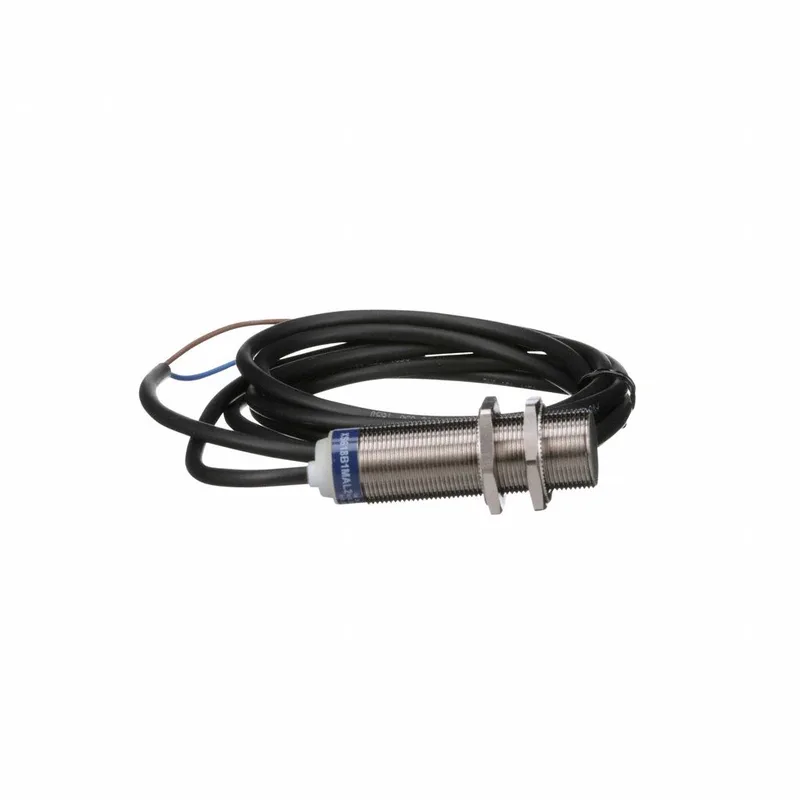

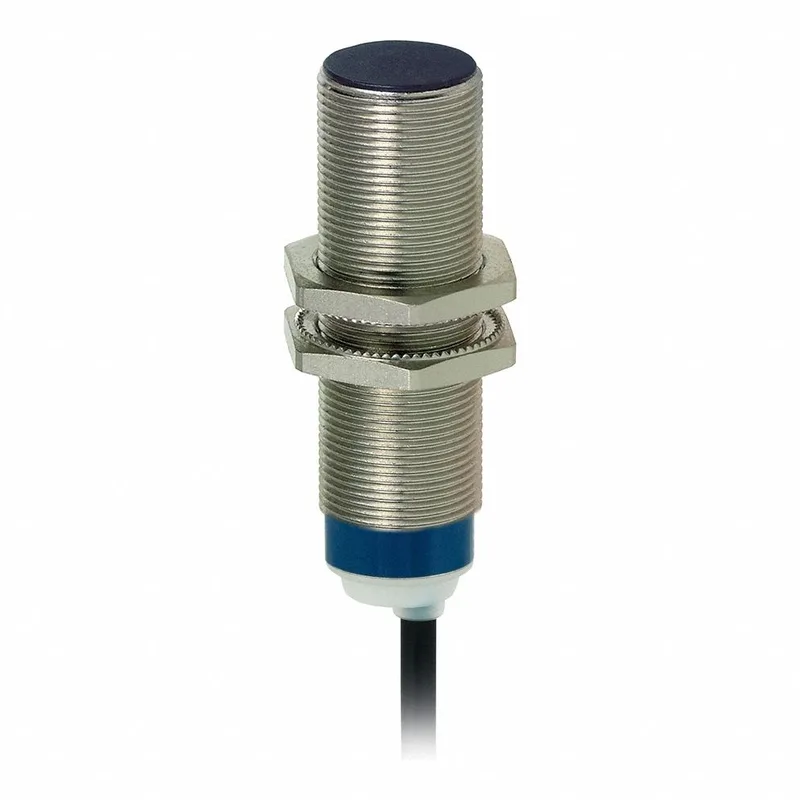

The Telemecanique XS618B1MAL2 is an M18 shielded inductive proximity sensor from the XS6 series, with a 2-wire AC/DC output circuit and an 8mm sensing range. It operates on 24-240V AC or DC, making it a grab-and-go replacement for mixed-voltage panels without swapping supply modules. Rated IP68 and IP69K with a nickel-plated brass body, this sensor is built for washdown zones and high-pressure cleaning cycles. The shielded face allows flush mounting, and the prewired 2-meter cable with bare ends keeps termination simple. Output is NO, rated to switch 300 mA maximum. The supply voltage range of 24-240V AC/DC covers most industrial control voltages, so you don't need separate DC power if your panel runs 120VAC.
Compliance & Approvals
Carries CE, CSA, RoHS, and UL Listed markings, covering the major certification requirements for industrial machinery control panels.
