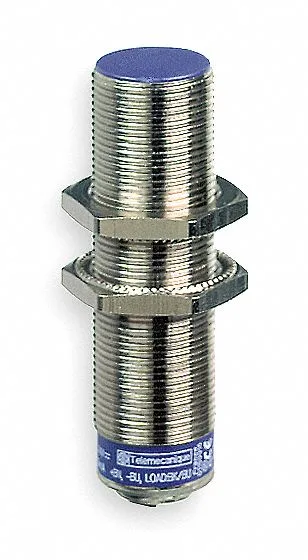

Schneider Electric XS618B1MAU20 — Proximity Sensors

Telemecanique XS618B1MAU20 Sensor, M18 Shielded, IP67/IP69K

MPNXS618B1MAU20

Telemecanique XS6 Series, Inductive Cylindrical Proximity Sensor, M18 Threaded, Shielded, 2-Wire AC/DC, 24-240 V, 300 mA, NO, IP67/IP69K, NEMA 4X.

$18.52Ref. price · indicative, final on quote
Schneider Electric XS618B1MAU20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS618B1MAU20 — Identification
ParameterValue
SeriesXS6
XS618B1MAU20 — Sensing
ParameterValue
Sensing distance, max. (alt.)8 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS618B1MAU20 — Electrical
ParameterValue
Supply voltage24-240V AC ; 24-240V DC
AC supply voltage rating24-240V AC
DC supply voltage rating24-240V DC
Number of wires2
Electrical connection1/2 in Connector
Electrical installation typeDirect Connector
XS618B1MAU20 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeAC/DC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC/DC
XS618B1MAU20 — Mechanical
ParameterValue
Body styleCylindrical
Overall height73 mm
Body materialBrass
XS618B1MAU20 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS618B1MAU20 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

The XS618B1MAU20: This XS6-series inductive proximity sensor is an M18 cylindrical shielded unit with a brass body and nickel-plated finish. It runs on a 2-wire AC/DC output (NO contact) over a supply range of 24 to 240 V AC or DC, switching up to 300 mA. Sensing distance is 4 to 8 mm, derated for the shielded face. Rated IP67 and IP69K, with a NEMA 4X enclosure – so it handles high-pressure washdown environments common in food and beverage or heavy industrial lines.

Sourcing note

Current production means we can source this sensor to order. Submit an RFQ for lead time and pricing – availability varies but we work with suppliers that ship clean and on time.

Frequently asked questions

What is the series designation for this part?

It belongs to the Telemecanique XS6 series of inductive cylindrical proximity sensors.

What IP rating does this sensor carry?

Rated IP67 and IP69K, meaning it is protected against dust ingress and withstands high-pressure, high-temperature washdown.

What compliance certifications does the XS618B1MAU20 have?

It is CE, CSA, RoHS, and UL Listed – covering safety and environmental standards for North American and European markets.

Will the XS618B1MAU20 drop into a panel spec’d for the XS8D1A1MAL2?

No – the XS8 is a rectangular block with prewired cable, while the XS6 is an M18 cylindrical body with a 1/2 in connector. Electrical specs are similar, but mechanical and connection changes are required.
