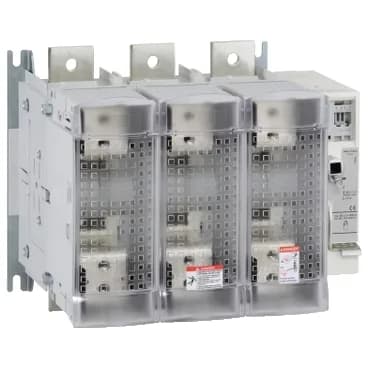

GS2TB3
Schneider Electric
80 °C-40 °C< 10 kA
Lead time on requestGet quote
Schneider Electric GS2T Series
2 variants · Schneider Electric
About the Schneider Electric Schneider Electric GS2T Series series
The Schneider Electric Schneider Electric GS2T Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common breaking capacity of 6400 A at 400 V (AC-23B), depth of 250 mm and electrical life cycles of 1000 cycles AC-23 A 1000 cycles AC-23B 200 cycles DC-23 A 200 cycles DC-23B. Variants differ by width, so you can match the exact width your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric GS2T Series variants and discontinued ones from a single page.
Select a variant by
- Width
- 364 mm · 458 mm
Variant comparison

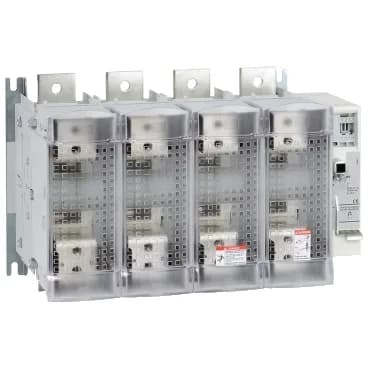

| Parameter | GS2TB3 | GS2TB4 |
|---|---|---|
| Width | 364 mm | 458 mm |
Shared specifications
- Breaking capacity
- 6400 A at 400 V (AC-23B)
- Depth
- 250 mm
- Electrical life cycles
- 1000 cycles AC-23 A 1000 cycles AC-23B 200 cycles DC-23 A 200 cycles DC-23B
- Fuse type
- BS
- Height
- 300 mm
- Main product or component type
- Switch-disconnector-fuse
- Mechanical life cycles
- 8000 cycles
- Network type
- DC AC
- Operating temperature
- -20...70 °C
- Storage temperature
- -40...80 °C
- Temp operating max
- 70 °C
- Temp operating min
- -20 °C
Request a quote on any Schneider Electric GS2T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Schneider Electric Schneider Electric GS2T Series variants differ?
- Schneider Electric GS2T Series part numbers differ by width. Use the selection guide above to pick by width.
- How many Schneider Electric Schneider Electric GS2T Series part numbers are listed?
- 2 Schneider Electric Schneider Electric GS2T Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Schneider Electric Schneider Electric GS2T Series?
- Request a quote (RFQ) for any Schneider Electric GS2T Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
