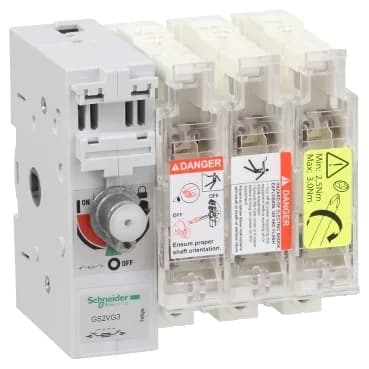

GS2VG3
Schneider Electric
80 °C-40 °C< 10 kA
Lead time on requestGet quote
Schneider Electric GS2V Series
2 variants · Schneider Electric
About the Schneider Electric GS2V Series
The Schneider Electric GS2V Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common breaking capacity of 8000 A at 400 V (AC-23B), depth of 289 mm and electrical life cycles of 100 cycles DC-23 A 100 cycles DC-23B 500 cycles AC-23 A 500 cycles AC-23B. Variants differ by width, so you can match the exact width your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric GS2V Series variants and discontinued ones from a single page.
Select a variant by
- Width
- 442 mm · 562 mm
Shared specifications
- Breaking capacity
- 8000 A at 400 V (AC-23B)
- Depth
- 289 mm
- Electrical life cycles
- 100 cycles DC-23 A 100 cycles DC-23B 500 cycles AC-23 A 500 cycles AC-23B
- Fuse type
- DIN
- Height
- 355 mm
- Main product or component type
- Switch-disconnector-fuse
- Mechanical life cycles
- 5000 cycles
- Operating temperature
- -20...70 °C
- Storage temperature
- -40...80 °C
- Temp operating max
- 70 °C
- Temp operating min
- -20 °C
- Temp storage max
- 80 °C
Variant comparison

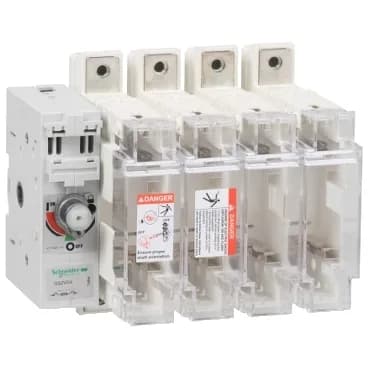

| Parameter | GS2VG3 | GS2VG4 |
|---|---|---|
| Width | 442 mm | 562 mm |
Request a quote on any Schneider Electric GS2V Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Schneider Electric GS2V Series variants differ?
- Schneider Electric GS2V Series part numbers differ by width. Use the selection guide above to pick by width.
- How many Schneider Electric GS2V Series part numbers are listed?
- 2 Schneider Electric GS2V Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Schneider Electric GS2V Series?
- Request a quote (RFQ) for any Schneider Electric GS2V Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
