XS1M18AB120EX
Schneider Electric

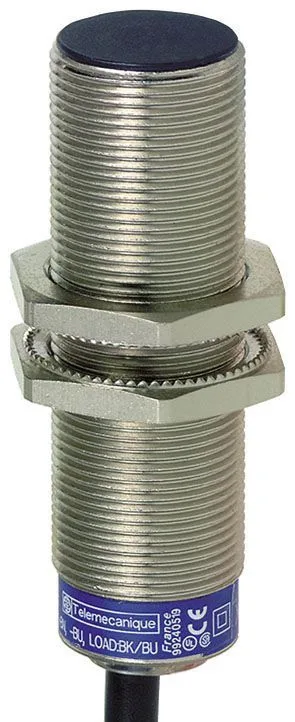

53 mmInductive Sensor Analog - M18
Ref. price$120.00
Lead time on requestGet quote
Schneider Electric XS1M18 Series
58 variants · Schneider Electric
About the Schneider Electric XS1M18 Series
The Schneider Electric XS1M18 Series series groups 58 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by frequency, temp operating max and voltage, so you can match the exact frequency your application requires using the selection guide below.
Select a variant by
- Frequency
- 2 kHz · 25 HZ (AC), 2000 HZ (DC) · 1000 HZ
- Temp operating max
- 158 °C · 176 °C
- Voltage
- 12 TO 24 VDC · 24 TO 240 VAC, 24 TO 210 VDC · 48 VDC
Variant comparison
| Parameter | XS1M18MA250K | XS1M18MB250K | XS1M18MB250 | XS1M18MA250A | XS1M18DA9AV | XS1M18MA250L1 |
|---|---|---|---|---|---|---|
| Frequency | 25 HZ (AC), 2000 HZ (DC) | 25 HZ (AC), 2000 HZ (DC) | 2 kHz | 25 HZ (AC), 2000 HZ (DC) | — | 25 HZ (AC), 2000 HZ (DC) |
| Temp operating max | 176 °C | 176 °C | — | 176 °C | 158 °C | 176 °C |
| Voltage | 24 TO 240 VAC, 24 TO 210 VDC | 24 TO 240 VAC, 24 TO 210 VDC | — | 24 TO 240 VAC, 24 TO 210 VDC | 48 VDC | 24 TO 240 VAC, 24 TO 210 VDC |
Request a quote on any Schneider Electric XS1M18 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
