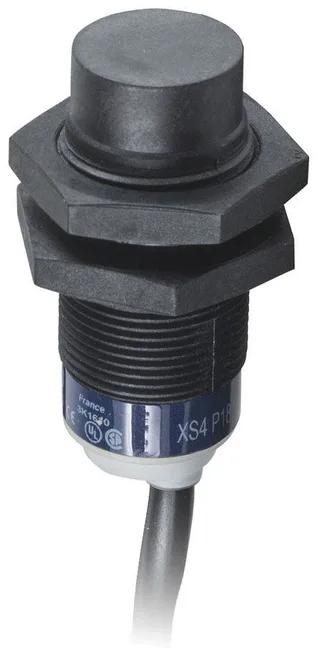

XS4P18PA370
Schneider Electric
48–120 V≥ 1000 Hz8–20 mm
Ref. price$118.59
Lead time on requestGet quote

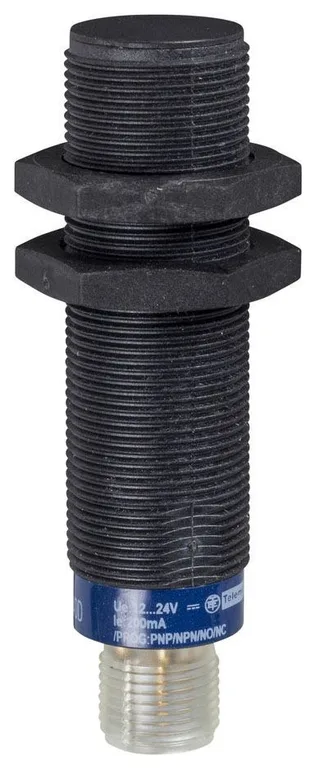

Schneider Electric XS4P18 Series
37 variants · Schneider Electric
About the Schneider Electric XS4P18 Series
The Schneider Electric XS4P18 Series series groups 37 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by IP rating, frequency and sensor diameter, so you can match the exact IP rating your application requires using the selection guide below.
Select a variant by
- IP rating
- IP67 · IP68
- Frequency
- 2 kHz · 25 HZ (AC), 2000 HZ (DC) · 2000 HZ
- Sensor diameter
- 18 mm · 24 mm
- Supply voltage
- 24-240 V AC ; 24-240 V DC · Not Rated ; 12-24 V DC
- Output circuit type
- AC/DC-Type · Analog · NPN
- Temp operating max
- 158 °C · 176 °C
- Voltage
- 12 TO 48 VDC · 24 TO 240 VAC, 24 TO 210 VDC
Variant comparison
| Parameter | XS4P18MB230 | XS4P18PA370 | XS4P18AB120 | XS4P18KP340 | XS4P18NA340 | XS4P18MA230K |
|---|---|---|---|---|---|---|
| IP rating | IP68 | — | IP67 | IP68 | IP68 | — |
| Frequency | — | 2000 HZ | — | 2 kHz | — | 25 HZ (AC), 2000 HZ (DC) |
| Sensor diameter | 18 mm | — | 18 mm | — | 18 mm | — |
| Supply voltage | 24-240 V AC ; 24-240 V DC | — | Not Rated ; 12-24 V DC | — | Not Rated ; 12-24 V DC | — |
| Output circuit type | AC/DC-Type | — | Analog | — | NPN | — |
| Temp operating max | — | 176 °C | — | — | — | 158 °C |
| Voltage | — | 12 TO 48 VDC | — | — | — | 24 TO 240 VAC, 24 TO 210 VDC |
Request a quote on any Schneider Electric XS4P18 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
