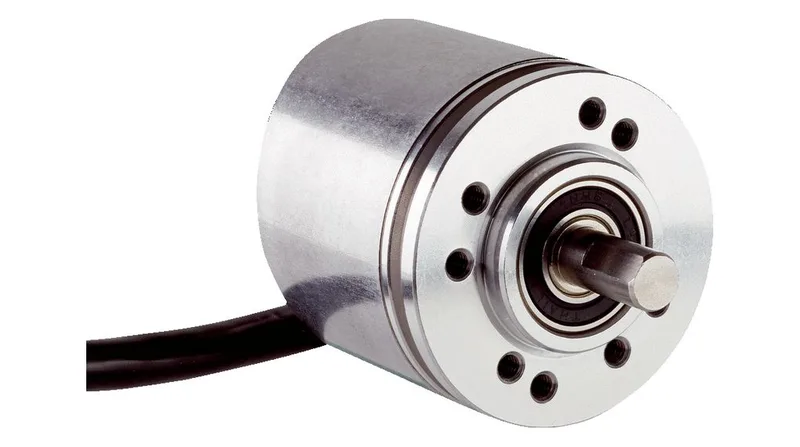

SICK DBS36E-S3EK00360
MPNDBS36E-S3EK00360
Rotary Encoder 360 PPR 30V Screw IP65 Cable, 1.5 m DBS36
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | DBS36 |
| Encoder type | Encoder |
Mechanical
| Parameter | Value |
|---|---|
| Shaft diameter | 6 mm |
| Shaft type | Solid |
| Mounting type | Screw |
| Housing material | Aluminium |
Other specifications
| Parameter | Value |
|---|---|
| Channels | 6 |
| Output current | 30 mA |
| Termination type | Cable, 1.5 m |
| External diameter | 36.7 mm |
| IP rating | IP65 |
| Encoder resolution | 360 PPR |
| Encoder output type | HTL;Push-Pull |
| Operating voltage max. | 30 V |
| Operating voltage min. | 7 V |
| Operating temperature max. | 85 °C |
| Operating temperature min. | -20 °C |
MPN
DBS36E-S3EK00360
