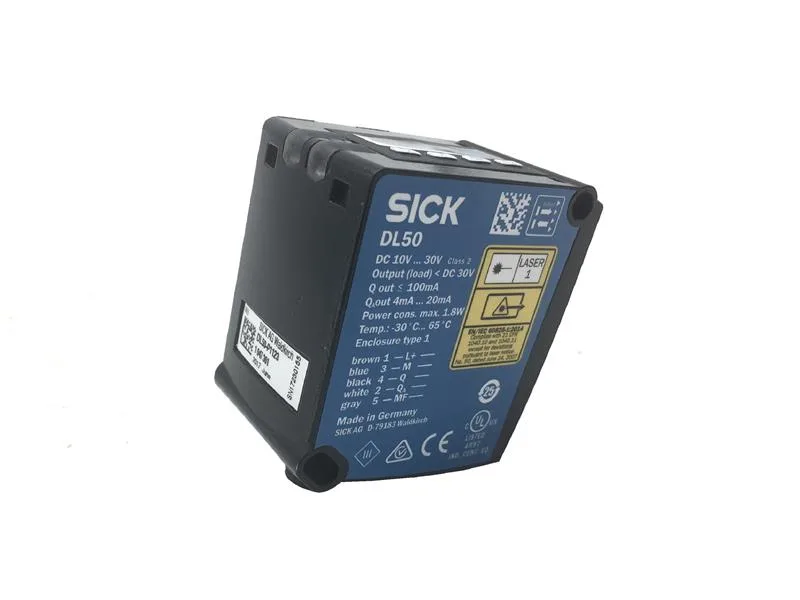

SICK DL50-P1123
MPNDL50-P1123
Optical Distance Sensor PNP 50m 15ms 30VDC Red Laser Connector, M12, 5-Pin, Male IP65 Dx50
$430.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | Dx50 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 50 m |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 VDC |
| Operating voltage, min. | 10 VDC |
| Termination type | Connector, M12, 5-Pin, Male |
Mechanical
| Parameter | Value |
|---|---|
| Length | 58 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 140 |
| Operating temperature, min. | -30 |
| IP protection rating | IP65 |
Other specifications
| Parameter | Value |
|---|---|
| Width | 36 mm |
| Height | 63 mm |
| Light type | Red Laser |
| Sensor type | Distance Sensor |
| Response time | 15 ms |
| Sensing distance min. | 200 mm |
| Optical sensor output type | PNP |
MPN
DL50-P1123
