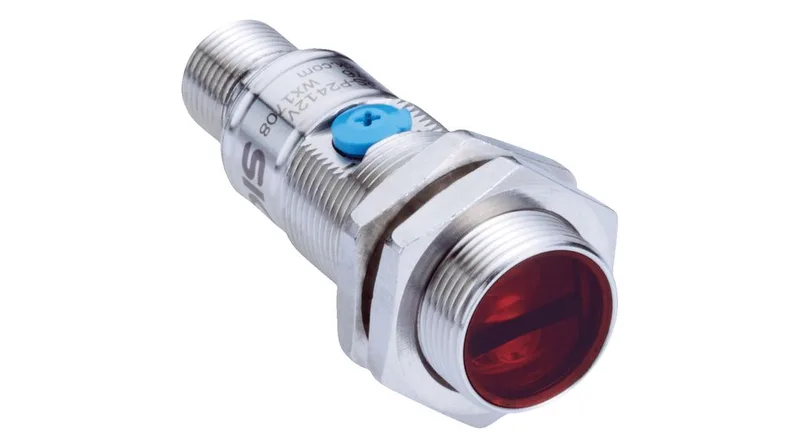

SICK GRTE18S-P2412V
MPNGRTE18S-P2412V
Photoelectric Sensor PNP 115mm 1ms 30V 100mA LED, Visible Red Light Connector, M12, Male IP67 / IP68 / IP69K GR18 Inox
$147.62Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | GR18 Inox |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 115 mm |
| Sensing distance, min. | 3 mm |
| Response time | 1 ms |
| Light type | LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, Male |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67;IP68;IP69K |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 55.9 mm |
| Width | 18 mm |
MPN
GRTE18S-P2412V
