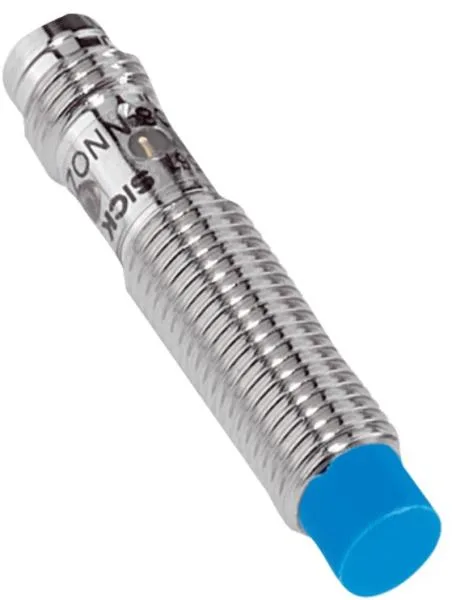

SICK IME08-06NPSZTOS
MPNIME08-06NPSZTOS
Inductive Sensor PNP 500Hz 30V 10mA 6mm Connector, M8, 3-Pin IP67 IME
$62.03Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IME |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 6 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M8, 3-Pin |
| Parameter | Value |
|---|---|
| Switching frequency | 500 Hz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Non Flush Mount |
| Length | 50 mm |
| Housing material | Brass Nickel Plated |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
| Parameter | Value |
|---|---|
| Construction form | M8 |
| Current consumption | 10 mA |
| Repeat accuracy (%) | 5 % |
| Inductive sensor output type | PNP |
MPN
IME08-06NPSZTOS
