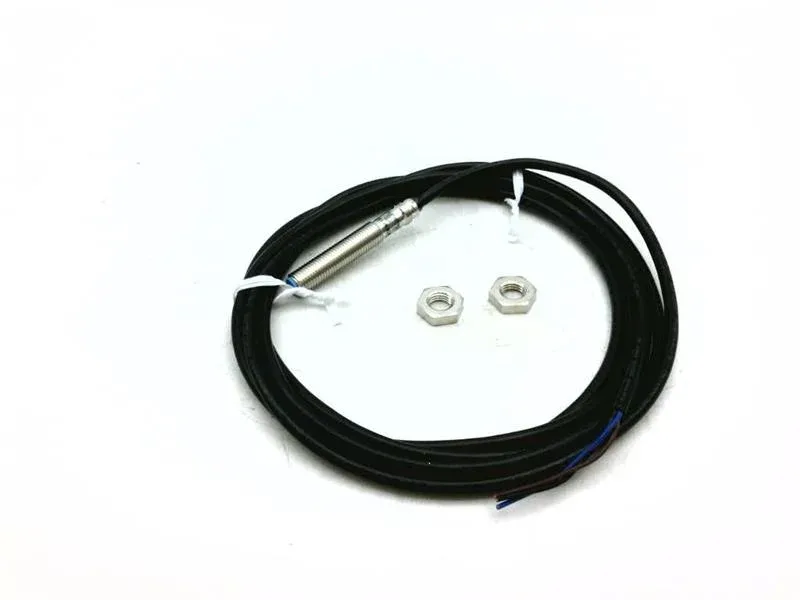

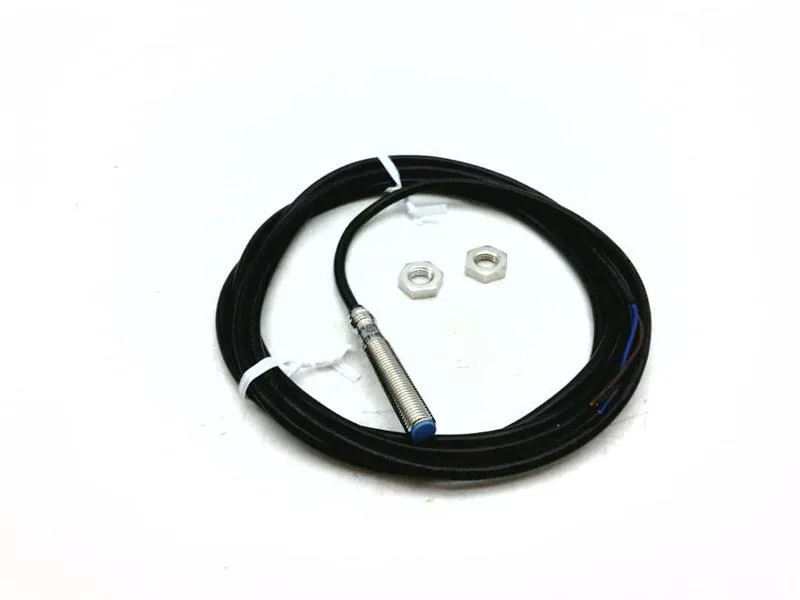

SICK IME08-1B5PSZW2S
MPNIME08-1B5PSZW2S
Inductive Sensor PNP 4kHz 30V 10mA 1.5mm Cable, 2 m IP67 IME
$31.75 – $40.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | IME |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 1.5 mm |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Cable, 2 m |
Output
| Parameter | Value |
|---|---|
| Switching frequency | 4 kHz |
| Load current | 200 mA |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Flush Mount |
| Length | 52 mm |
| Housing material | Brass Nickel Plated |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
Other specifications
| Parameter | Value |
|---|---|
| Construction form | M8 |
| Current consumption | 10 mA |
| Repeat accuracy (%) | 2 % |
| Inductive sensor output type | PNP |
MPN
IME08-1B5PSZW2S
