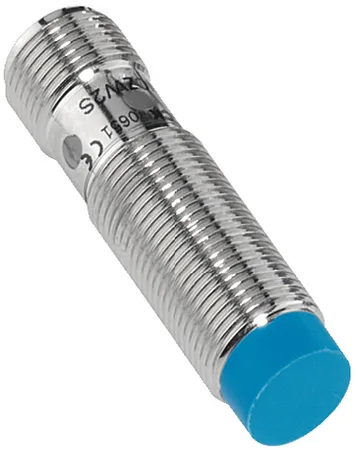

SICK IME12-08NPSZC0K — Proximity Sensors

SICK IME12-08NPSZC0K

MPNIME12-08NPSZC0K

Inductive Sensor PNP, Make Contact (NO) 2kHz 30V 10mA 8mm Connector, M12, 4-Pin, Male IP67 IME

$26.67 – $31.26Ref. price · indicative, final on quote
SICK IME12-08NPSZC0K datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

IME12-08NPSZC0K — Identification
ParameterValue
SeriesIME
IME12-08NPSZC0K — Sensing
ParameterValue
Sensing distance, max.8 mm
IME12-08NPSZC0K — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin, Male
IME12-08NPSZC0K — Output
ParameterValue
Switching frequency2 kHz
Load current200 mA
IME12-08NPSZC0K — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length46 mm
Housing materialMetal;Nickel Plated Brass
IME12-08NPSZC0K — Environmental
ParameterValue
Operating temperature, max.75 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
IME12-08NPSZC0K — Other specifications
ParameterValue
Construction formM12
Current consumption10 mA
Repeat accuracy (%)2 %
Inductive sensor output typePNP, Make Contact (NO)
MPN
IME12-08NPSZC0K
