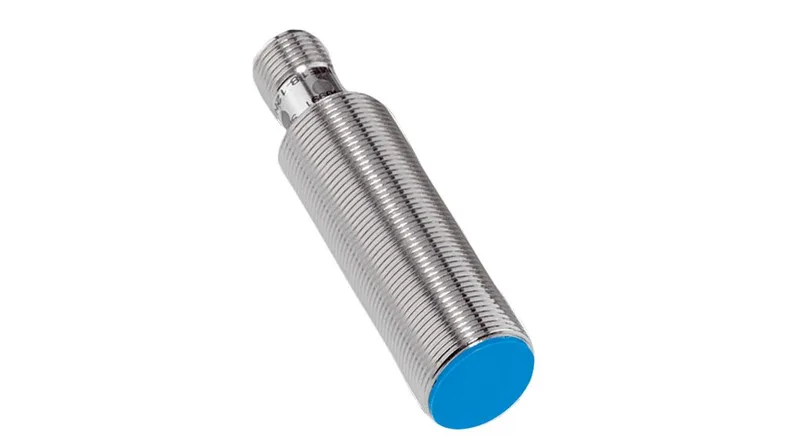

SICK IME18-08BNSZC0S
MPNIME18-08BNSZC0S
Inductive Sensor NPN 1kHz 30V 8mm Connector, M12, 4-Pin IP67 IME
$30.48 – $34.64Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IME |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 8 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M12, 4-Pin |
| Parameter | Value |
|---|---|
| Switching frequency | 1 kHz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Flush Mount |
| Length | 69 mm |
| Housing material | Brass Nickel Plated |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
| Parameter | Value |
|---|---|
| Construction form | M18 |
| Repeat accuracy (%) | 2 % |
| Inductive sensor output type | NPN |
MPN
IME18-08BNSZC0S
