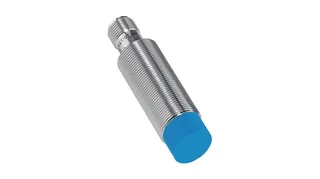

SICK IME18-12NPSZC0S
MPNIME18-12NPSZC0S
Inductive Sensor PNP, Make Contact (NO) 1kHz 30V 10mA 12mm Connector, M12, 4-Pin, Male IP67 IME
$30.48Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality Check4K Pin & Lot Verification
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IME |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 12 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M12, 4-Pin, Male |
| Parameter | Value |
|---|---|
| Switching frequency | 1 kHz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Non Flush Mount |
| Length | 69 mm |
| Housing material | Metal;Nickel Plated Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
| Parameter | Value |
|---|---|
| Construction form | M18 |
| Current consumption | 10 mA |
| Repeat accuracy (%) | 2 % |
| Inductive sensor output type | PNP, Make Contact (NO) |
MPN
IME18-12NPSZC0S
