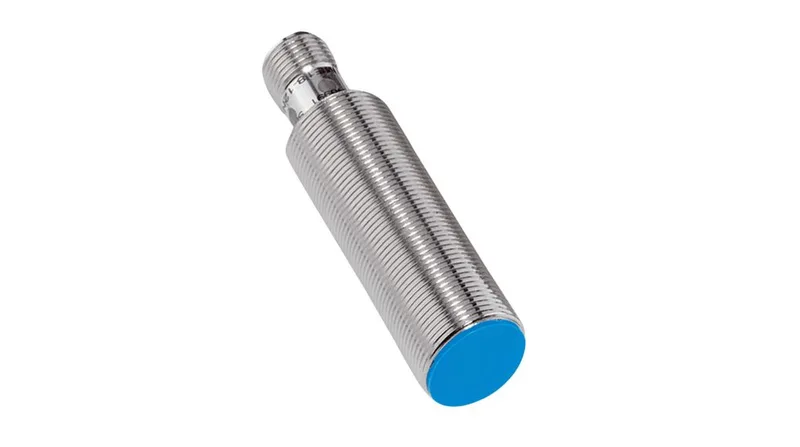

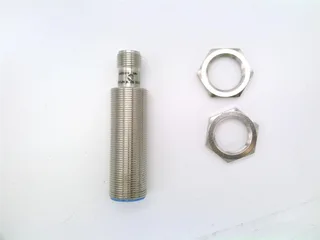

SICK IME18-08BPPZC0S — Proximity Sensors

SICK IME18-08BPPZC0S

MPNIME18-08BPPZC0S

Inductive Sensor PNP 1kHz 30V 8mm Connector, M12, 4-Pin IP67 IME

$35.56 – $41.75Ref. price · indicative, final on quote
SICK IME18-08BPPZC0S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

IME18-08BPPZC0S — Identification
ParameterValue
SeriesIME
IME18-08BPPZC0S — Sensing
ParameterValue
Sensing distance, max.8 mm
IME18-08BPPZC0S — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin
IME18-08BPPZC0S — Output
ParameterValue
Switching frequency1 kHz
Load current200 mA
IME18-08BPPZC0S — Mechanical
ParameterValue
Mounting typeFlush Mount
Length69 mm
Housing materialBrass Nickel Plated
IME18-08BPPZC0S — Environmental
ParameterValue
Operating temperature, max.75 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
IME18-08BPPZC0S — Other specifications
ParameterValue
Construction formM18
Repeat accuracy (%)2 %
Inductive sensor output typePNP
MPN
IME18-08BPPZC0S
