SICK IME30-15BPSZC0S — Proximity Sensors

SICK IME30-15BPSZC0S

MPNIME30-15BPSZC0S

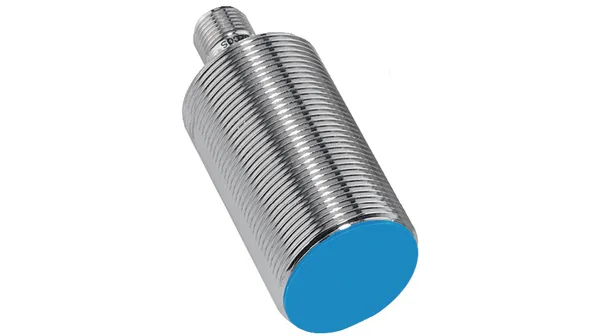

Inductive Sensor PNP, Make Contact (NO) 500Hz 30V 10mA 15mm Connector, M12, 4-Pin, Male IP67 IME

$26.82 – $48.94Ref. price · indicative, final on quote
SICK IME30-15BPSZC0S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

IME30-15BPSZC0S — Identification
ParameterValue
SeriesIME
IME30-15BPSZC0S — Sensing
ParameterValue
Sensing distance, max.15 mm
IME30-15BPSZC0S — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin, Male
IME30-15BPSZC0S — Output
ParameterValue
Switching frequency500 Hz
Load current200 mA
IME30-15BPSZC0S — Mechanical
ParameterValue
Mounting typeFlush Mount
Length71 mm
Housing materialMetal;Nickel Plated Brass
IME30-15BPSZC0S — Environmental
ParameterValue
Operating temperature, max.75 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
IME30-15BPSZC0S — Other specifications
ParameterValue
Construction formM30
Current consumption10 mA
Repeat accuracy (%)2 %
Inductive sensor output typePNP, Make Contact (NO)
MPN
IME30-15BPSZC0S
