The OD1-B035H15I25 is a 2D laser displacement sensor from the OD Mini series, delivering a 4-20 mA analog output proportional to displacement over a 20.0 mm to 50.0 mm installation distance. It runs on a 12 ~ 24 VDC supply and terminates via a cable with an M12 connector — standard for industrial quick-disconnect. The IP67 rating means the housing and optics withstand washdown and dust ingress, so it's suited for inline measurement on a conveyor or in a machining cell where coolant mist is present.

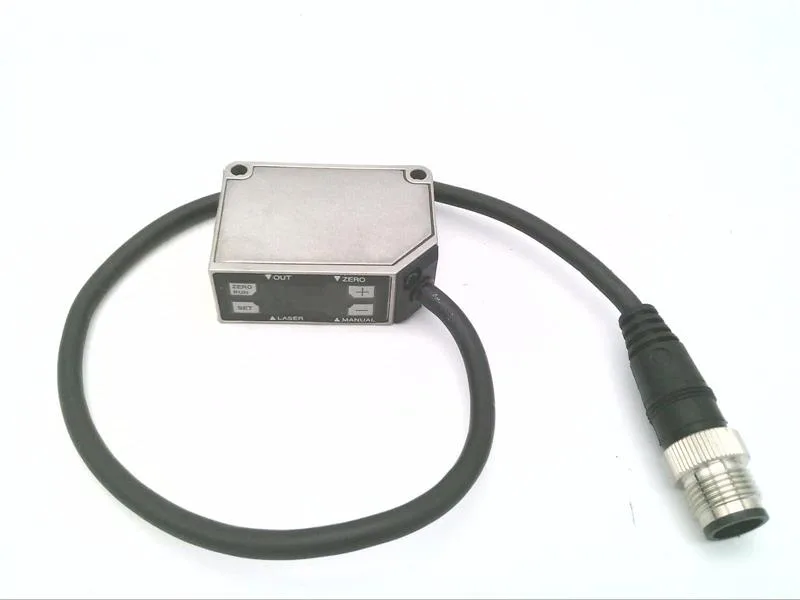

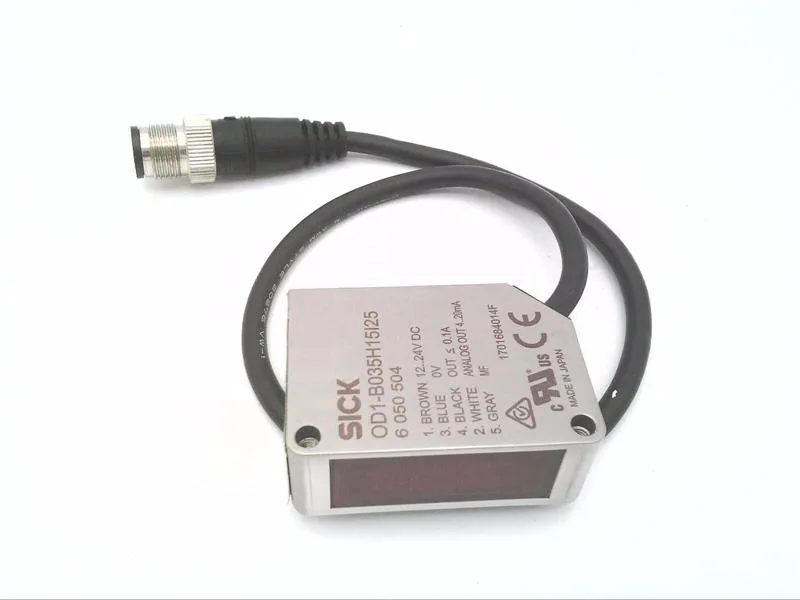

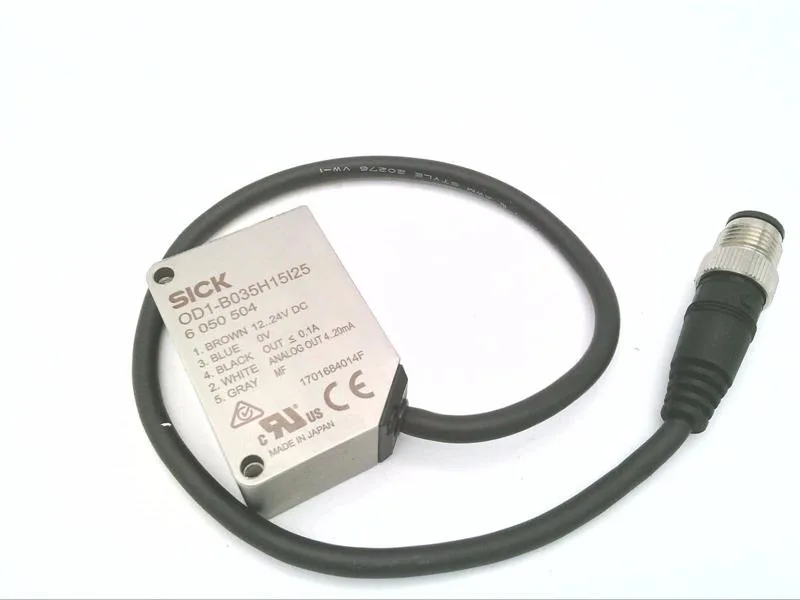

Chassis-mount form factor with IP67 sealing — the sensor body and the cable entry are protected against hose-directed water and dust. Mounting distance is 20.0 mm to 50.0 mm; the 2D laser spot gives a measurement line rather than a single point, which helps average out surface texture on a moving target.
