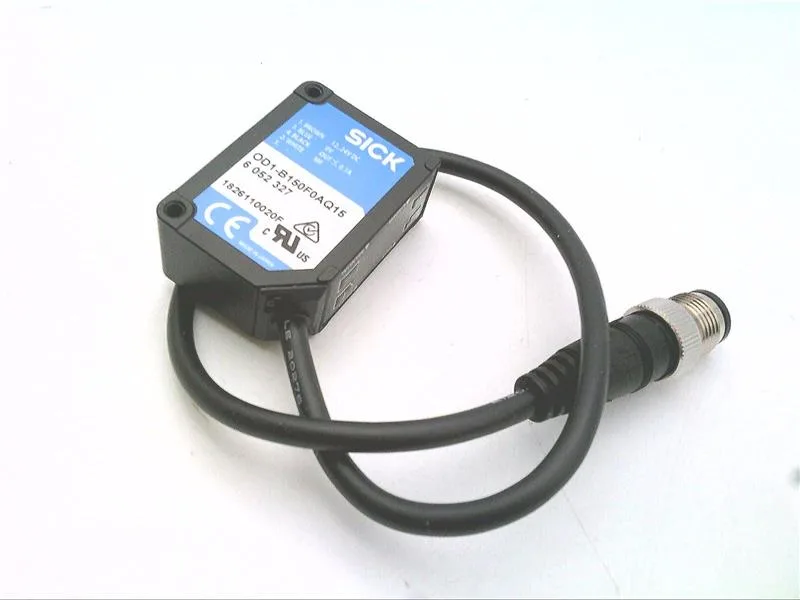

The OD1-B150F0AQ15 is a 2D laser displacement sensor from the OD Mini series, built for non-contact profile measurement on moving or stationary targets. It runs on 12 ~ 24VDC and delivers a PNP/NPN output via the M12 connector on the cable. The 50.0mm to 250.0mm installation distance covers a useful mid-range band — close enough for small-part inspection on a conveyor, far enough to clear fixturing or robot end-effectors. The IP67 rating means the housing and optics survive washdown environments, so it fits food-and-bev or machining lines where coolant spray is routine. Operating temperature is -10°C to 40°C, which is typical for indoor industrial use but not freezer or high-heat zones. Chassis mount with the cable-and-connector termination means it bolts to a bracket and plugs into the controller — no panel wiring required.
OD1-B150F0AQ15 2D Laser Displacement Sensor, OD Mini, 50-250
MPNOD1-B150F0AQ15
Active
OD Mini 2D Laser Displacement Sensor, 12 ~ 24VDC, 50.0mm ~ 250.0mm range, IP67, Cable with Connector, Chassis Mount.
$318.77 – $864.35Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OD Mini |
| Type | 2D Laser Displacement Sensor |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C~40°C |
| Parameter | Value |
|---|---|
| Supply voltage | 12 ~ 24VDC |
| Termination style | Cable with Connector |
| IP rating | IP67 - Dust Tight, Waterproof |
| Installation distance | 50.0mm ~ 250.0mm |
Product details
Frequently asked questions
What is the closest functional alternative to the OD1-B150F0AQ15?
The OD1-B150F0AQ14 is the closest match — same sensor type, same range, same supply voltage, same IP rating. The only difference is the AQ14 uses a connector only, while the AQ15 has a cable with connector. Both are active and share the same mounting footprint.
What is the operating temperature range of the OD1-B150F0AQ15?
The sensor is rated for -10°C to 40°C ambient.
What is the supply voltage requirement?
It accepts 12 to 24 VDC.
MPN
OD1-B150F0AQ15
