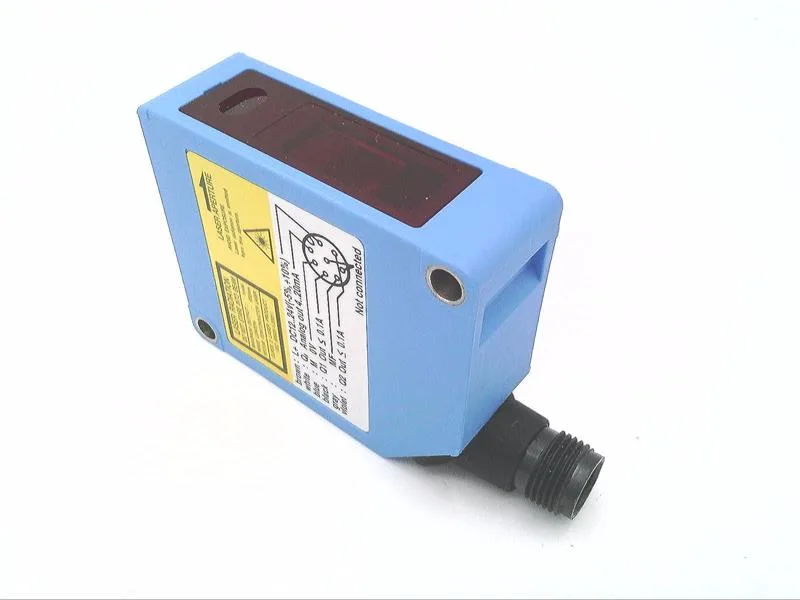

The SICK OD2-P120W60I0 is a 2D laser displacement sensor from the OD Value series, built for non-contact profile measurement on moving or stationary targets. It runs on a 12 ~ 24 VDC supply and delivers a 60.0 mm to 180.0 mm installation distance range, which means you can set the standoff anywhere inside that window and still get a valid measurement — useful when fixturing varies or the target surface shifts. The IP67 rating means the housing and optics survive washdown environments — think food processing, beverage lines, or outdoor conveyor stations where hosing down the line is part of the shift routine. The connector termination keeps field replacement quick; no hardwiring into the sensor body.
Peer Comparison
The closest functional sibling is the OD2-P120W60U0 — same OD Value series, same 12 ~ 24 VDC supply, same IP67 housing, same 60–180 mm installation distance, same connector termination. The difference is the output type: the I0 variant carries an analog current output (likely 4–20 mA), while the U0 variant is probably a voltage output (0–10 V). If your PLC input card expects current loops, the I0 is the drop-in; if it expects voltage, you want the U0. No rewiring needed for the mechanical fit — same chassis mount, same connector pinout.
Deployment Context
Chassis-mount form factor means it bolts to a bracket or machine frame — no DIN rail, no panel cutout. The IP67 seal lets it live right on the line, not inside a cabinet, so you save enclosure space and cabling length.
