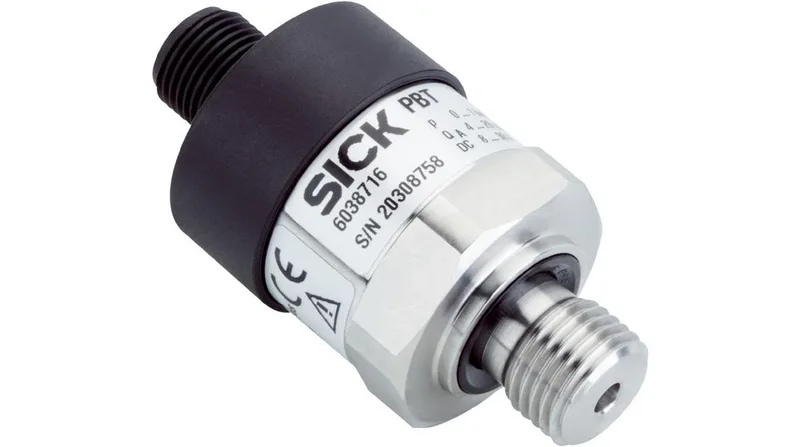

SICK PBT-RB250SG1SSNULA0Z — Gauge Pressure Transmitters

SICK PBT-RB250SG1SSNULA0Z

MPNPBT-RB250SG1SSNULA0Z

Pressure Sensor 0... 250 bar G1/4"

$134.62 – $162.15Ref. price · indicative, final on quote
SICK PBT-RB250SG1SSNULA0Z datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PBT-RB250SG1SSNULA0Z — Measurement
ParameterValue
Linearity error0.5 %
PBT-RB250SG1SSNULA0Z — Communication & Output
ParameterValue
Output signal0...5 V;3-Wire
PBT-RB250SG1SSNULA0Z — Environmental & Hazardous Area
ParameterValue
Ingress protection (IP) ratingIP 65
PBT-RB250SG1SSNULA0Z — Other specifications
ParameterValue
Accuracy≤ ± 1 % of the span
MeasurandGauge Pressure
Sensor typePressure Sensor
Pressure typeGauge pressure
Response time<prefix></prefix>4<suffix></suffix>
Medium temperature0 ... 80 °C
Pressure connectionG1/4"
Repeat accuracy max.0.1 %
Operating temperature0 ... 80 °C
Pressure measurement range0 ... 250 bar
MPN
PBT-RB250SG1SSNULA0Z
