SICK UC4-11341 — Proximity Sensors

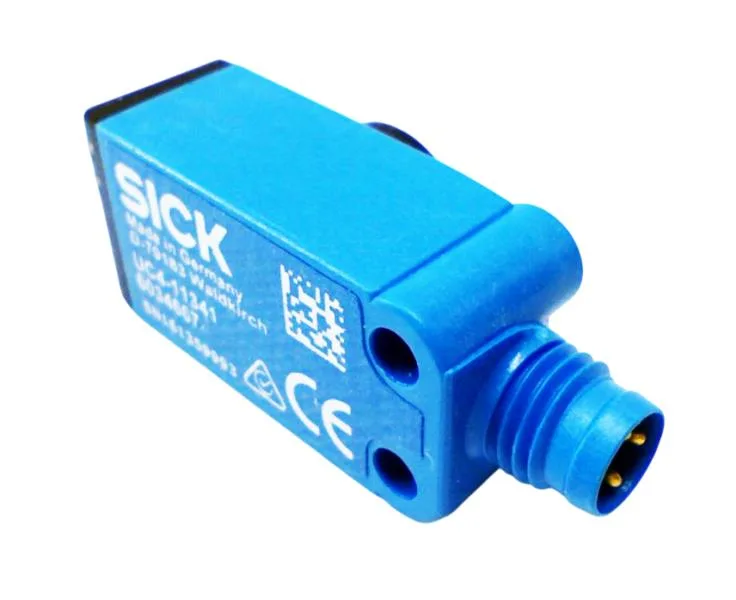

SICK UC4-11341 Ultrasonic Sensor, 100 mm, PNP, M8 Connector

MPNUC4-11341

SICK UC4 Series ultrasonic sensor, UC4-11341, 13–100 mm sensing range, PNP output, M8 3-pin connector, IP65/IP67, ABS housing.

$142.24 – $283.47Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

UC4-11341 — Identification
ParameterValue
SeriesUC4 Series
UC4-11341 — Sensing
ParameterValue
Sensing distance, max.100 mm
UC4-11341 — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.15 V
Termination typeConnector, M8, 3-Pin
UC4-11341 — Output
ParameterValue
Switching frequency30 Hz
UC4-11341 — Mechanical
ParameterValue
Housing materialABS
UC4-11341 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP65;IP67
UC4-11341 — Other specifications
ParameterValue
Sensing distance min.13 mm
Ultrasonic sensor output typePNP

Product details

The SICK UC4-11341 is an ultrasonic proximity sensor from the UC4 Series, with a sensing range from 13 mm minimum to 100 mm maximum. It switches at 30 Hz and outputs a PNP signal, so it's a straightforward presence or level detector for non-contact object detection in automated lines. The housing is ABS plastic, sealed to IP65 and IP67, meaning it handles washdown and outdoor moisture without issue. Termination is via an M8 3-pin connector — a compact footprint that saves space on the machine frame.

No need to hunt for surplus or worry about a looming cut-off.

Frequently asked questions

What is the closest functional second-source to the UC4-11341?

The UM12-1172211 is a functional peer with a similar ultrasonic sensing principle and PNP output, but it has a different housing (brass-nickel-plated vs ABS), a larger M12 connector, and a longer sensing range (20–150 mm). It is not a direct mechanical or electrical swap without panel rework.

What series does the UC4-11341 belong to?

It belongs to the SICK UC4 Series.

What is the sensing range of the UC4-11341?

The minimum sensing distance is 13 mm and the maximum is 100 mm.

What output type and connection does the UC4-11341 use?

It has a PNP output and terminates via an M8 3-pin connector.
