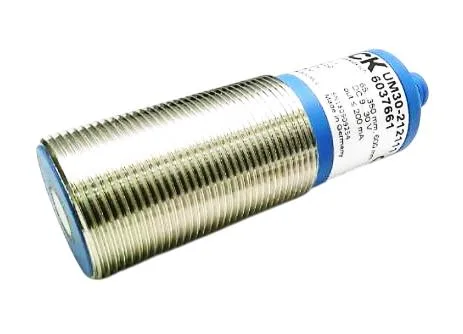

SICK UM30 Series, Ultrasonic Sensor, PNP, 65...350mm, IP65/IP67, M12 5-Pin Connector.
| Parameter | Value |
|---|---|
| Series | UM30 |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 350 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 9 V |
| Termination type | Connector, M12, 5-Pin |
| Parameter | Value |
|---|---|
| Switching frequency | 12 Hz |
| Parameter | Value |
|---|---|
| Housing material | Brass Nickel Plated;Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP65;IP67 |
| Parameter | Value |
|---|---|
| Sensing distance min. | 65 mm |
| Ultrasonic sensor output type | PNP |
The UM30-212111: Housing is brass nickel-plated with a PBT front face. IP65 and IP67 rated.
Terminates via an M12 5-pin male connector. Supply range is 9 V to 30 V. If your line runs near an oven or a freezer door, check the extremes — the housing material doesn't limit you, but the transducer face might fog in rapid thermal cycling.
The UM30-213111 is the closest peer — same housing, same connector, same PNP output and IP rating, but with a longer sensing range of 200 mm to 1.3 m and a slower 8 Hz switching frequency. The UM30-212111 is the shorter-range, faster-switching option in the same mechanical footprint.
Yes, the M12 5-pin connector and pinout are identical across the UM30 series. The mounting thread and barrel dimensions are the same, so it swaps onto the same bracket without rewiring or re-drilling.
